Using Claude Code to Update the MacBook Touch Bar Status

Transform your MacBook Pro Touch Bar into a beautiful, color-coded status display for Claude Code! This fantastic feature gives you instant visual feedback when Claude is working, waiting for input, or needs your attention - all with vibrant, eye-catching colors.

Overview

The MacBook Pro Touch Bar (2016-2020 models) becomes an incredibly useful productivity tool when paired with Claude Code. Using BetterTouchTool and a clever shell script, you'll enjoy dynamic, colorful status updates that let you know exactly what Claude is doing at a glance - no need to switch windows or check the terminal!

Touch Bar UI Status Example

Beautiful Color-Coded Status Indicators

Each status has its own distinctive color, making it instantly recognizable:

Status Icon Display Text Background Color When It Appears
Running Task ⚙ Running Task... Blue Claude is hard at work executing a tool
Waiting for Prompt 💬 Waiting for Prompt Green Claude is ready and waiting for your next brilliant idea
Task Complete ✓ Task Complete Bright Green Success! Claude finished a specific task
Question Waiting ? Question Waiting Royal Blue Claude has a question for you
Permission Needed ⚠ Permission Needed Yellow Claude needs your permission to proceed
Waiting for Input ⏳ Waiting for Input Red Claude is blocked and needs your response
Context Warning ⚡ Context Warning Orange Heads up! Context window is getting full

The color scheme is thoughtfully designed: - Green = Ready/Success (go ahead!) - Blue = Working/Thinking (Claude is busy) - Yellow = Attention needed (permission request) - Red = Blocked (waiting for you) - Orange = Warning (context limit approaching)

Requirements

  • MacBook Pro with Touch Bar (2016-2020 models)
  • macOS 10.12.2 or later
  • BetterTouchTool - The amazing Touch Bar customization app
  • Claude Code CLI installed

Quick and Easy Installation

Step 1: Install BetterTouchTool

Getting started is a breeze with Homebrew:

brew install --cask bettertouchtool

After installation, open BetterTouchTool and grant the required accessibility permissions when prompted. You're almost there!

Step 2: Make the Notification Script Executable

chmod +x /path/to/moving-rainbow/src/macbook-status-bar/claude-notify-simple.sh

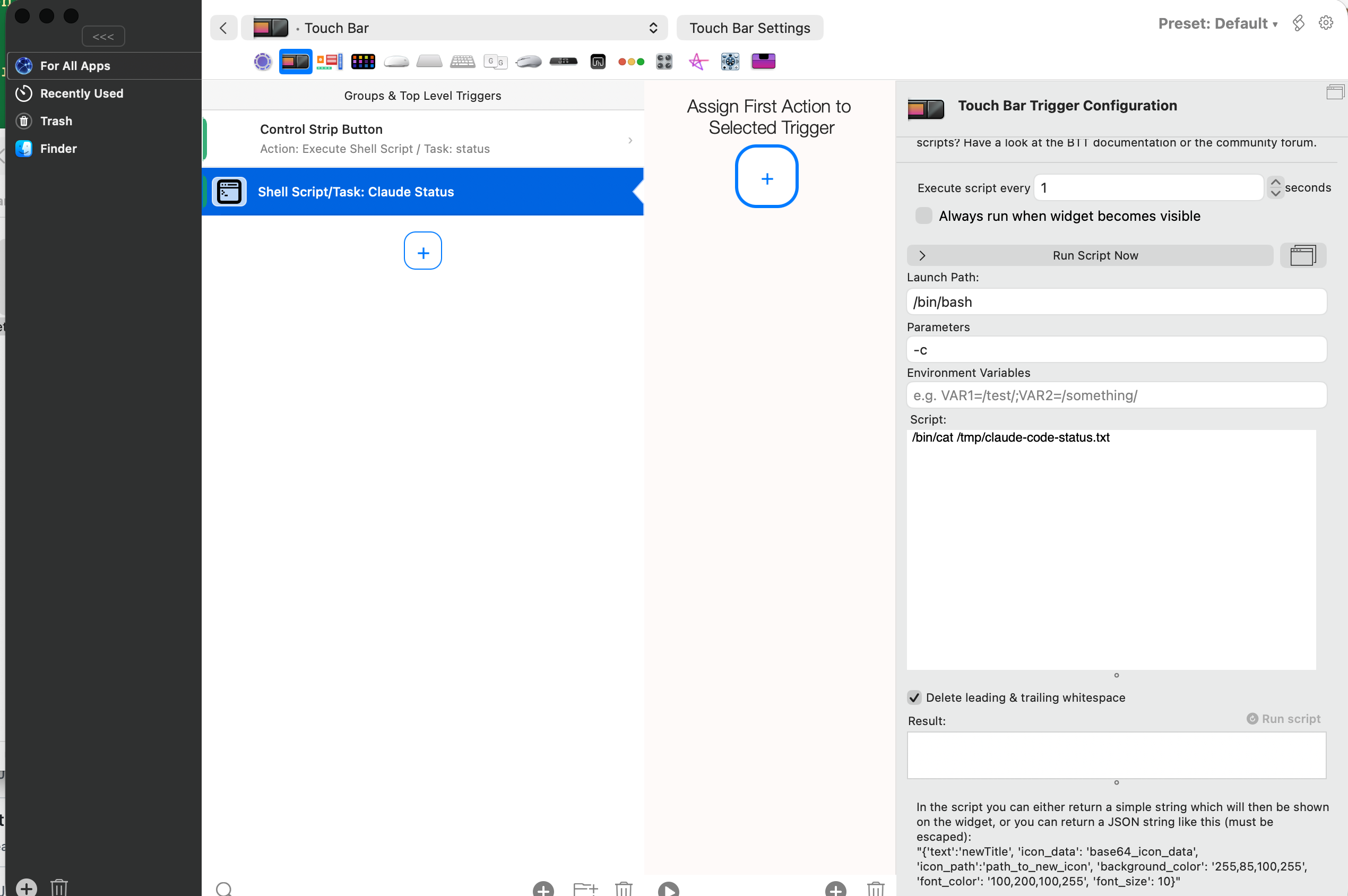

Step 3: Configure the Touch Bar Widget

Setting up BetterTouchTool is straightforward:

  1. Open BetterTouchTool
  2. Select Touch Bar in the dropdown at the top
  3. Click the + button to add a new trigger
  4. Select Shell Script / Task Widget
  5. Configure the widget with these settings:
Setting Value
Script /bin/cat /tmp/claude-code-status.txt
Execute script every 1 seconds
Launch Path /bin/bash
Parameters -c
  1. Click Run Script Now to test - you should see a beautiful colored status appear!

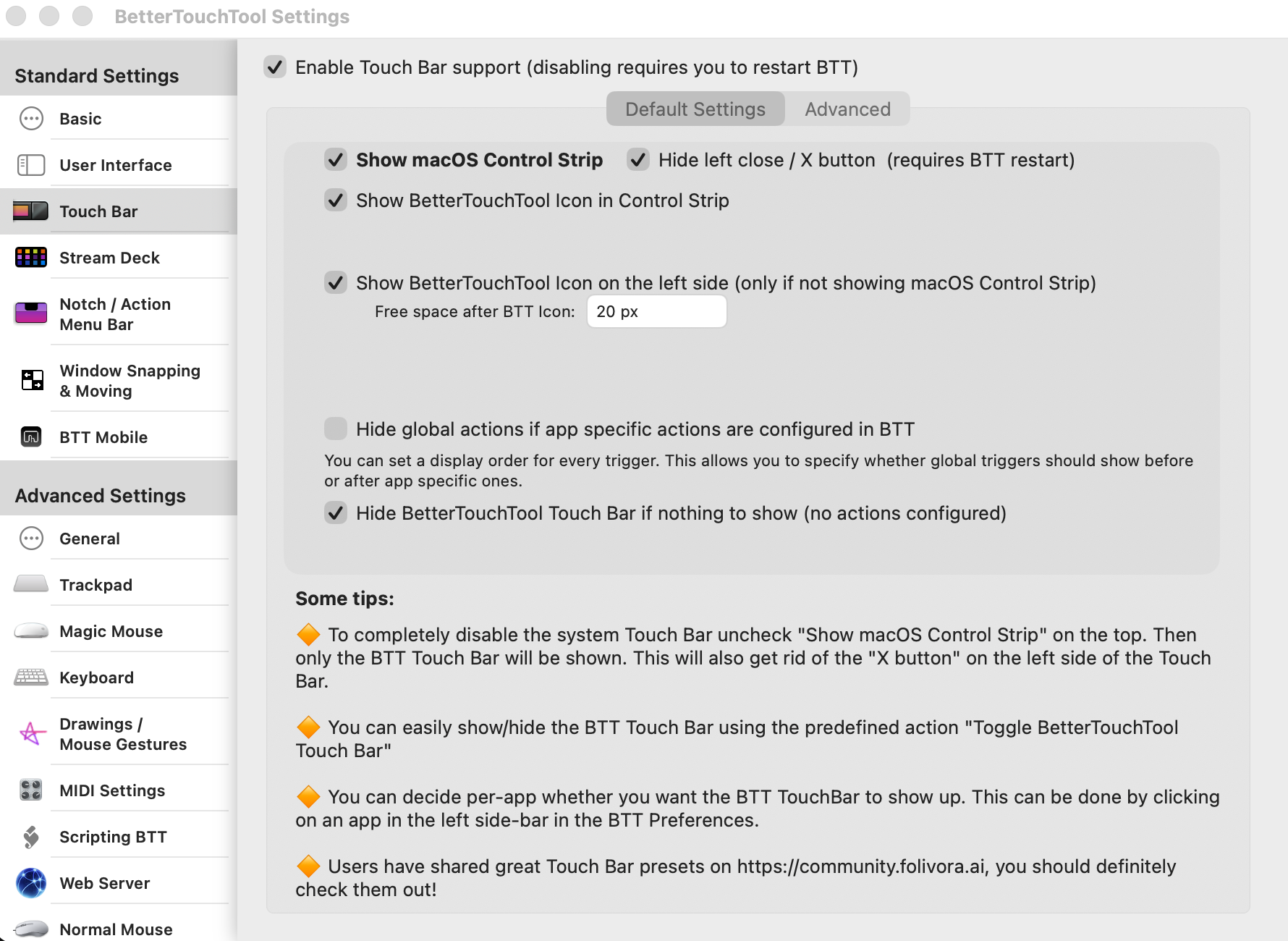

You can also fine-tune your settings here:

Step 4: Configure Claude Code Hooks

Now for the magic! Add these hooks to your ~/.claude/settings.json file to automatically update the Touch Bar when Claude's state changes:

{
  "hooks": {
    "PreToolUse": [
      {
        "matcher": "",
        "hooks": [
          {
            "type": "command",
            "command": "/path/to/claude-notify-simple.sh running"
          }
        ]
      }
    ],
    "Stop": [
      {
        "matcher": "",
        "hooks": [
          {
            "type": "command",
            "command": "/path/to/claude-notify-simple.sh prompt"
          }
        ]
      }
    ]
  }
}

Replace /path/to/ with the actual path to your script (e.g., /Users/yourname/Documents/ws/moving-rainbow/src/macbook-status-bar/).

Important: After modifying settings.json, restart Claude Code for the hooks to take effect.

Step 5: Enjoy the Colorful Experience!

Test all the wonderful status colors:

# Beautiful blue - "Running Task..."
./src/macbook-status-bar/claude-notify-simple.sh running

# Lovely green - "Waiting for Prompt"
./src/macbook-status-bar/claude-notify-simple.sh prompt

# Bright green success - "Task Complete"
./src/macbook-status-bar/claude-notify-simple.sh flash

# Royal blue - "Question Waiting"
./src/macbook-status-bar/claude-notify-simple.sh question

# Attention-grabbing yellow - "Permission Needed"
./src/macbook-status-bar/claude-notify-simple.sh permission

# Urgent red - "Waiting for Input"
./src/macbook-status-bar/claude-notify-simple.sh waiting

# Warning orange - "Context Warning"
./src/macbook-status-bar/claude-notify-simple.sh context

# Clear the status
./src/macbook-status-bar/claude-notify-simple.sh off

How the Magic Works

The notification system uses a brilliantly simple file-based approach combined with Claude Code hooks. Hover over each node in the diagram below to learn more!

View Fullscreen Diagram

The Delightful Flow

  1. You submit a prompt to Claude Code
  2. Claude decides to use a tool (like Bash, Read, Write, etc.)

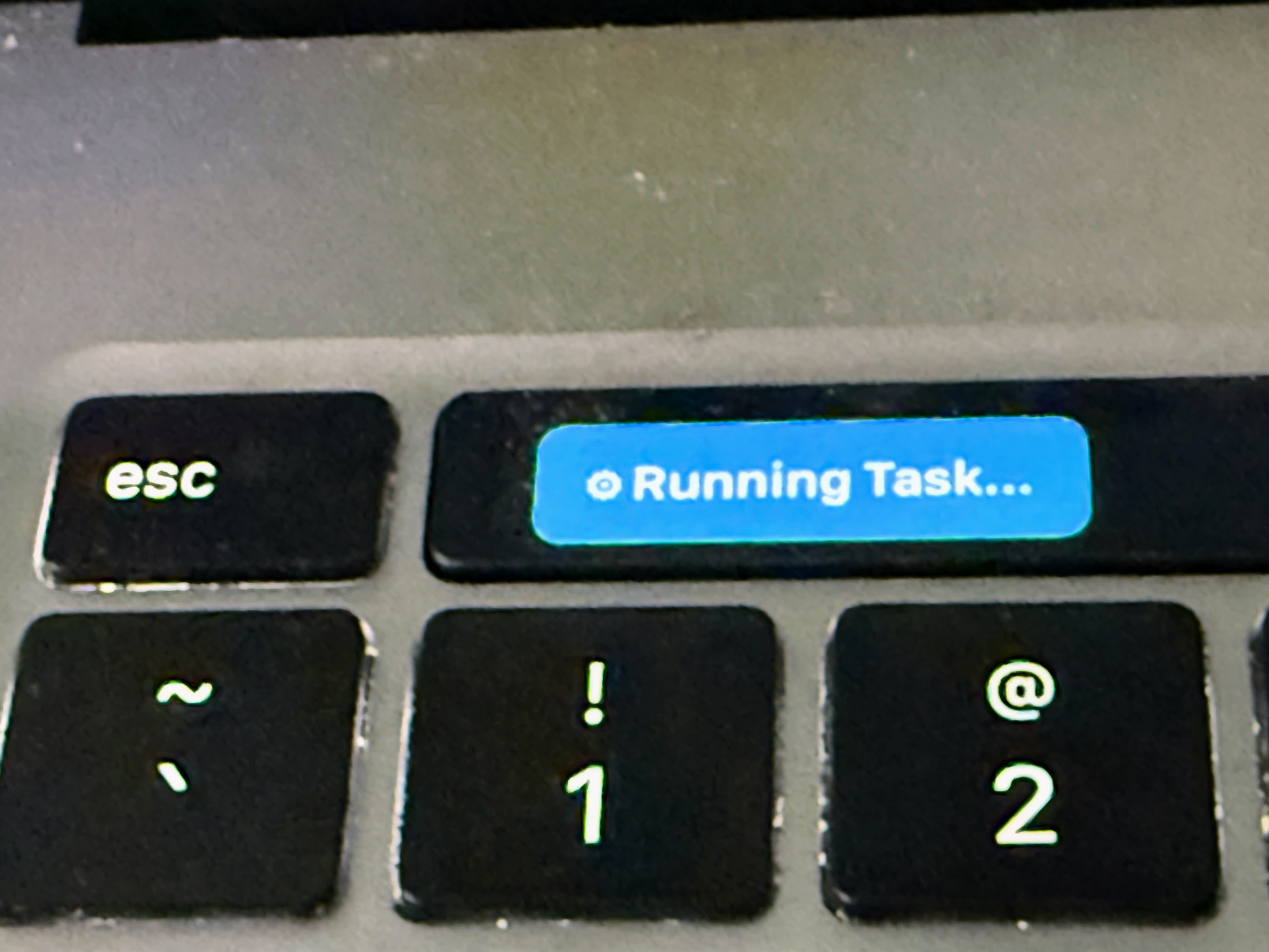

  3. PreToolUse hook fires → Touch Bar turns blue with "⚙ Running Task..."
  4. BetterTouchTool polls the file every second and displays the colorful content
  5. Claude finishes responding

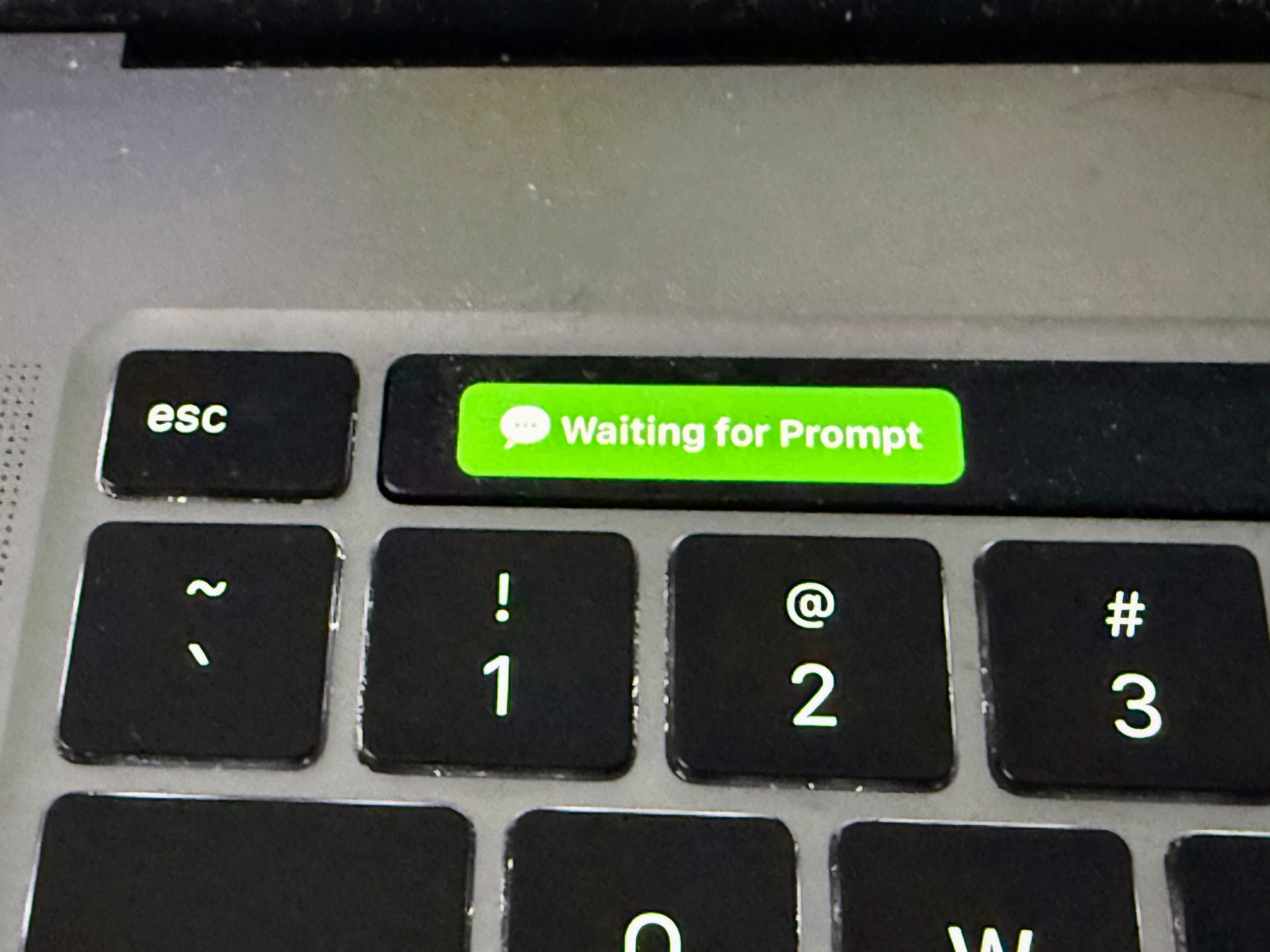

  6. Stop hook fires → Touch Bar turns green with "💬 Waiting for Prompt"
  7. You smile knowing exactly when Claude is ready for your next input!

Understanding Claude Code Hooks

Claude Code hooks are powerful shell commands that execute automatically when specific events occur. They let you extend Claude Code's functionality in creative ways - like this gorgeous Touch Bar integration!

Hook Types Used in This Project

Hook When It Fires Our Usage Color
PreToolUse Before Claude executes any tool Show "Running Task..." Blue
Stop When Claude finishes responding Show "Waiting for Prompt" Green

Hook Configuration Structure

{
  "hooks": {
    "HookName": [
      {
        "matcher": "",
        "hooks": [
          {
            "type": "command",
            "command": "/path/to/script.sh argument"
          }
        ]
      }
    ]
  }
}
  • HookName: The event that triggers the hook (e.g., PreToolUse, Stop)
  • matcher: Filter to match specific tools (empty string "" matches all)
  • type: Must be "command" for shell commands
  • command: The full path to the script with any arguments

Available Hook Events

Hook Event Description
PreToolUse Fires before any tool is executed
PostToolUse Fires after a tool completes
Stop Fires when Claude finishes a response
UserPromptSubmit Fires when user submits a prompt
Notification Fires for various notification events

Using Matchers for Even More Control

The matcher field lets you create different colors for different tools:

{
  "PreToolUse": [
    {
      "matcher": "Bash",
      "hooks": [{ "type": "command", "command": "/path/to/script.sh bash-running" }]
    },
    {
      "matcher": "Read",
      "hooks": [{ "type": "command", "command": "/path/to/script.sh reading-file" }]
    },
    {
      "matcher": "",
      "hooks": [{ "type": "command", "command": "/path/to/script.sh running" }]
    }
  ]
}

The Colorful Shell Script

The script outputs JSON that BetterTouchTool uses to create beautiful colored widgets. Here's how the color magic happens:

#!/bin/bash
#
# Claude Code Touch Bar Notification Script
# ==========================================
#
# This script writes JSON status to a temp file that BetterTouchTool
# reads and displays on the MacBook Pro Touch Bar with gorgeous colors!
#
# JSON Format for BetterTouchTool:
#   {
#     "text": "Display Text",
#     "background_color": "R,G,B,A",   (0-255 for each)
#     "font_color": "R,G,B,A",          (0-255 for each)
#     "font_size": 12
#   }

STATUS_FILE="/tmp/claude-code-status.txt"
FONT_SIZE=12

# Color Definitions (RGBA format)
WHITE="255,255,255,255"
BLACK="0,0,0,255"
GREEN_BG="34,139,34,255"       # Forest green - ready states
BRIGHT_GREEN_BG="0,180,0,255"  # Bright green - success
BLUE_BG="30,144,255,255"       # Dodger blue - working states
ROYAL_BLUE_BG="65,105,225,255" # Royal blue - questions
YELLOW_BG="255,200,0,255"      # Gold - permission needed
RED_BG="220,20,60,255"         # Crimson - blocked states
ORANGE_BG="255,140,0,255"      # Dark orange - warnings

case "$1" in
    running)
        # Blue background - Claude is working hard!
        cat > "$STATUS_FILE" << EOF
{"text":"⚙ Running Task...","background_color":"${BLUE_BG}","font_color":"${WHITE}","font_size":${FONT_SIZE}}
EOF
        ;;
    prompt)
        # Green background - Ready for your next brilliant idea!
        cat > "$STATUS_FILE" << EOF
{"text":"💬 Waiting for Prompt","background_color":"${GREEN_BG}","font_color":"${WHITE}","font_size":${FONT_SIZE}}
EOF
        ;;
    flash)
        # Bright green - Success!
        cat > "$STATUS_FILE" << EOF
{"text":"✓ Task Complete","background_color":"${BRIGHT_GREEN_BG}","font_color":"${WHITE}","font_size":${FONT_SIZE}}
EOF
        ;;
    question)
        # Royal blue - Claude has a question
        cat > "$STATUS_FILE" << EOF
{"text":"? Question Waiting","background_color":"${ROYAL_BLUE_BG}","font_color":"${WHITE}","font_size":${FONT_SIZE}}
EOF
        ;;
    permission)
        # Yellow with black text - High visibility warning
        cat > "$STATUS_FILE" << EOF
{"text":"⚠ Permission Needed","background_color":"${YELLOW_BG}","font_color":"${BLACK}","font_size":${FONT_SIZE}}
EOF
        ;;
    waiting)
        # Red - Needs your attention now!
        cat > "$STATUS_FILE" << EOF
{"text":"⏳ Waiting for Input","background_color":"${RED_BG}","font_color":"${WHITE}","font_size":${FONT_SIZE}}
EOF
        ;;
    context)
        # Orange - Warning about context
        cat > "$STATUS_FILE" << EOF
{"text":"⚡ Context Warning","background_color":"${ORANGE_BG}","font_color":"${WHITE}","font_size":${FONT_SIZE}}
EOF
        ;;
esac

Adding Native macOS Notifications

Want even more notification goodness? The script supports native macOS notifications with delightful sound alerts. Just add the --notify flag:

./claude-notify-simple.sh flash --notify

This displays a macOS notification banner with sound in addition to updating the colorful Touch Bar!

Complete Example Configuration

Here's a complete ~/.claude/settings.json with Touch Bar hooks ready to go:

{
  "hooks": {
    "PreToolUse": [
      {
        "matcher": "",
        "hooks": [
          {
            "type": "command",
            "command": "/Users/dan/Documents/ws/moving-rainbow/src/macbook-status-bar/claude-notify-simple.sh running"
          }
        ]
      }
    ],
    "Stop": [
      {
        "matcher": "",
        "hooks": [
          {
            "type": "command",
            "command": "/Users/dan/Documents/ws/moving-rainbow/src/macbook-status-bar/claude-notify-simple.sh prompt"
          }
        ]
      }
    ]
  }
}

Troubleshooting

Touch Bar not updating

  1. Ensure BetterTouchTool is running
  2. Check Touch Bar Settings > Enable BetterTouchTool Touch Bar is checked
  3. Verify the script works: cat /tmp/claude-code-status.txt
  4. Click Run Script Now in BTT to test

Widget shows X icon

The script returned empty or failed. Test manually:

/bin/cat /tmp/claude-code-status.txt

If empty, run a notification command first:

./claude-notify-simple.sh running

Colors not showing

Make sure BetterTouchTool is configured to parse JSON output. The script outputs JSON in this format:

{"text":"💬 Waiting for Prompt","background_color":"34,139,34,255","font_color":"255,255,255,255","font_size":12}

Touch Bar not visible

Press the fn key to toggle between system Touch Bar and BetterTouchTool Touch Bar.

Hooks not working

  1. Verify ~/.claude/settings.json has valid JSON syntax
  2. Check the script path is absolute (starts with /)
  3. Ensure the script is executable: chmod +x claude-notify-simple.sh
  4. Restart Claude Code after modifying settings.json

Test hooks manually

# Watch the blue color appear!
/path/to/claude-notify-simple.sh running
sleep 2

# Now see it turn green!
/path/to/claude-notify-simple.sh prompt

Comparison with Pi 500+ Keyboard

This project also supports RGB LED notifications on the Raspberry Pi 500+ keyboard. Both are fantastic options - here's how they compare:

Feature Pi 500+ Keyboard MacBook Touch Bar
Visual Indicator Function key LEDs (F1-F3) Touch Bar widget
Text Display None (LED colors only) Full text + emoji
Colors HSV LED colors Beautiful RGBA colors
Hardware Raspberry Pi 500+ MacBook Pro 2016-2020
API RPiKeyboardConfig BetterTouchTool
Hook Integration Same hooks system Same hooks system
Color Customization Via Python script Via shell script JSON

Both give you that wonderful "at a glance" awareness of what Claude is doing!

Source Files

The source code for this fantastic feature is located in:

src/macbook-status-bar/
├── README.md                 # Detailed documentation
├── claude-notify.py          # Python script (advanced)
├── claude-notify-simple.sh   # Shell script with colors (recommended)
├── btt-preset.json          # BetterTouchTool preset
└── sample-hooks.json        # Example Claude Code hooks

References

Enjoy your beautiful, colorful Touch Bar status display! It's like having a friendly traffic light that tells you exactly when Claude is ready for your next command.
