NeoPixels

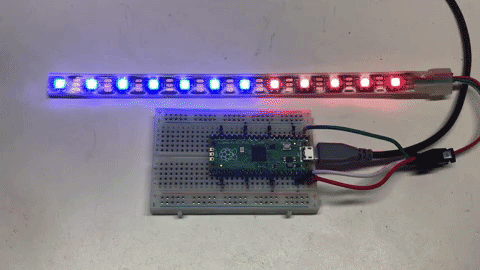

NeoPixel Demo

NeoPixels are Red-Green-Blue LEDs that are designed to makes them easy to control with three wires: GND, +5V and a single serial data line. They are very popular with our students because they are powerful, easy to program and full of bling.

Note

As of March of 2022 there is now built-in support for NeoPixels in the MicroPython 1.18 runtime for the Raspberry Pi RP2040 microcontroller. Although you can still use custom libraries, this tutorial assumes you are using version 1.18 or later.

Controlling NeoPixels is challenging since the timing of data being sent must be very precise. Python alone is not fast enough to send bits out of a serial port. So a small function that uses assembly code is used. This code can be called directly from a neopixel driver file so that the user's don't need to see this code.

MicroPython Example Code on ESP8266

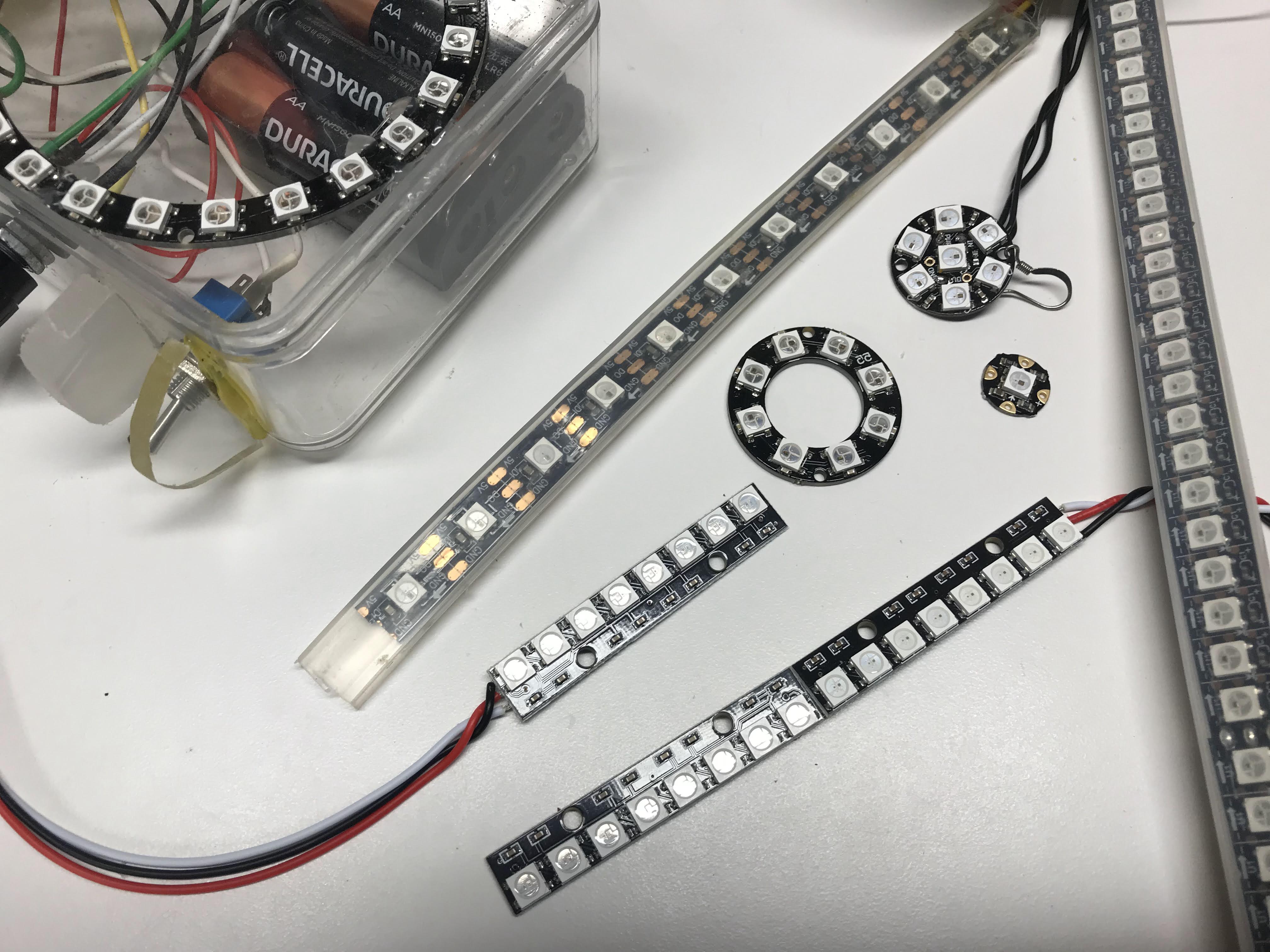

Different Types of NeoPixels

There are many different types of NeoPixels. They come in many forms such as strips, rings and matrices.

The most common type of NeoPixels are strips. The strips come in a variety of densities and waterproofing. The most common and easiest to use are the 60 pixels-per-meter type.

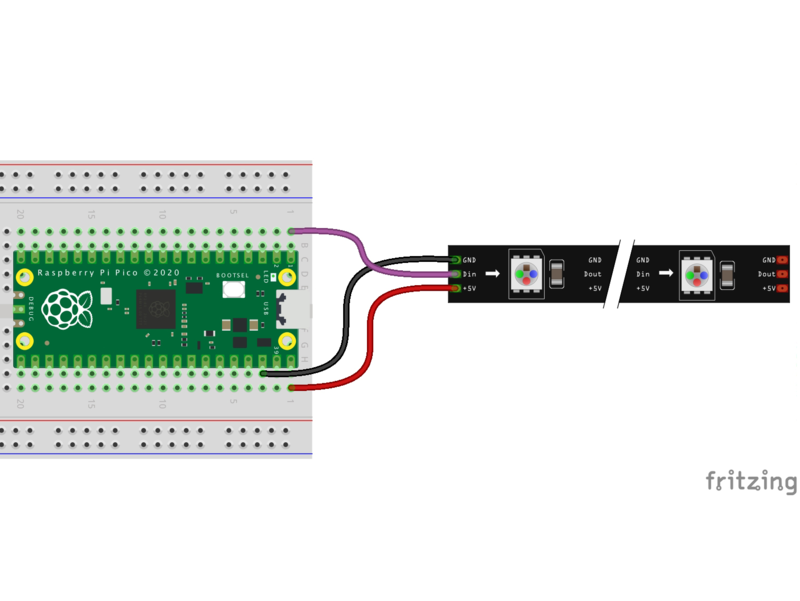

Circuit connections

LED Strip Pico Name Pico Pin Description
GND GND 3 Ground
5v VBUS 40 Voltage from the USB bus. Top right with USB on top
Data GP22 22 Row 12 on the right side

Note that you can also power most of the LED strips using the 3.3 volts available on Grove connectors. The only difference is the brightness might not be quite as high, but for most applications this will not be a problem.

Setup Parameters

Our Python code will have four parts:

  1. Declaration of the import of the NeoPixel library from the RP2 runtime. We also import the sleep function from the utime module.
  2. Initialization of the fixed static parameters. This is done once and the parameters are usually at the top of the file to make them easy to find and change for each application.
  3. Initialization of the NeoPixel object using these static parameters. This is also done just once.
  4. Sending the drawing commands to the device through the data port. This is usually done within a main loop.

Import Statements

Here are the import statements we use:

1
2
3
from machine import Pin
from neopixel import NeoPixel
from utime import sleep

Static Initialization Parameters

There are only two values. The number of pixels in the strip or ring and the pin number the data pin is connected to.

1
2
NUMBER_PIXELS = 8
LED_PIN = 22

Initialize the Strip Object

To setup the NeoPixel object we just pass it the two parameters like this:

1
strip = NeoPixel(machine.Pin(LED_PIN), NUMBER_PIXELS)

Here is the full initialization code:

1
2
3
4
5
6
7
from machine import Pin
from neopixel import NeoPixel
from utime import sleep

NUMBER_PIXELS = 8
LED_PIN_ID = 22
led_pin = machine.Pin(LED_PIN_ID)

Sample Programs

Now we are ready to write our first small test program!

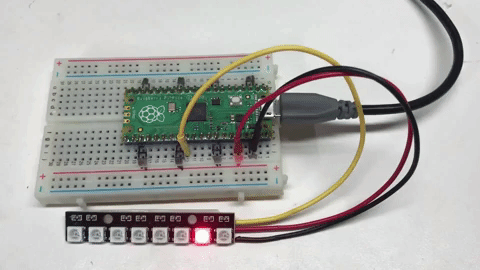

Move Red Pixel Across Strip

Move LED Up Strip

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
from neopixel import NeoPixel
from time import sleep

NUMBER_PIXELS = 8
LED_PIN = 22

strip = NeoPixel(machine.Pin(LED_PIN), NUMBER_PIXELS)

while True:
    for i in range(0, NUMBER_PIXELS):
        strip[i] = (255,0,0) # red=255, green and blue are 0
        strip.write() # send the data from RAM down the wire
        sleep(.1) # keep on 1/10 of a second
        strip[i] = (0,0,0) # change the RAM back but don't resend the data

Move Red, Green and Blue

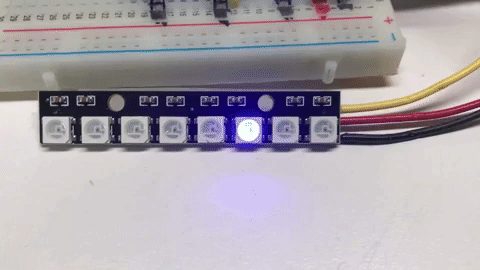

neopixel-red-green-blue The following program will just take the block of code in the for loop above and duplicate it three times, one for red, one for blue and one for green

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
from neopixel import NeoPixel
from time import sleep

NUMBER_PIXELS = 8
LED_PIN = 22

strip = NeoPixel(machine.Pin(LED_PIN), NUMBER_PIXELS)

# we use the same brightness for each color
brightness = 25
# here we define variables for each color
red = (brightness, 0, 0)
green = (0, brightness, 0)
blue = (0, 0, brightness)
while True:
    for i in range(0, NUMBER_PIXELS):
        strip[i] = red
        strip.write()
        sleep(.1)
        strip[i] = (0,0,0)
    for i in range(0, NUMBER_PIXELS):
        strip[i] =  green
        strip.write()
        sleep(.1)
        strip[i] = (0,0,0)
    for i in range(0, NUMBER_PIXELS):
        strip[i] =  blue
        strip.write()
        sleep(.1)
        strip[i] = (0,0,0)

Rainbow Cycle

The program cycles each pixel through all the colors in a rainbow. It uses two functions:

  1. wheel(pos) this function takes a position parameter from 0 to 255 and returns a triple of numbers for the red, green and blue values as the position moves around the color wheel. This is a handy program anytime you want to cycle through all the colors of the rainbow!
  2. rainbow_cycle(wait) will cycle each of the pixels in a strip through the color wheel. It gives the appearance that colors are moving across the strip. The wait is the delay time between updating the colors. A typical value for wait is .05 seconds or 50 milliseconds.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
from machine import Pin
from neopixel import NeoPixel
from utime import sleep

NEOPIXEL_PIN = 22
NUMBER_PIXELS = 8
strip = NeoPixel(machine.Pin(NEOPIXEL_PIN), NUMBER_PIXELS)

def wheel(pos):
    # Input a value 0 to 255 to get a color value.
    # The colors are a transition r - g - b - back to r.
    if pos < 0 or pos > 255:
        return (0, 0, 0)
    if pos < 85:
        return (255 - pos * 3, pos * 3, 0)
    if pos < 170:
        pos -= 85
        return (0, 255 - pos * 3, pos * 3)
    pos -= 170
    return (pos * 3, 0, 255 - pos * 3)

def rainbow_cycle(wait):
    global NUMBER_PIXELS, strip
    for j in range(255):
        for i in range(NUMBER_PIXELS):
            rc_index = (i * 256 // NUMBER_PIXELS) + j
            # print(rc_index)
            strip[i] = wheel(rc_index & 255)
        strip.write()
    sleep(wait)

counter = 0
offset = 0
while True:
    print('Running cycle', counter)
    rainbow_cycle(.05)
    counter += 1
