Drawing, Animation, and Color

Summary

This chapter expands your p5.js skills with drawing primitives, text rendering, and color theory. You will learn to use stroke() for outlines, rect() for rectangles, ellipse() for circles and ovals, and line() for connecting points. The chapter covers text display with text(), textSize(), and textAlign() functions, and explores shape rendering techniques. You will also develop a deeper understanding of color theory and how to apply it effectively in your simulations.

Concepts Covered

This chapter covers the following 10 concepts from the learning graph:

stroke()
rect()
ellipse()
line()
text()
textSize()
textAlign()
Drawing Primitives
Shape Rendering
Color Theory

Prerequisites

This chapter builds on concepts from:

Chapter 3: Getting Started with p5.js

Welcome to the Most Colorful Chapter!

Get ready to paint with code! This chapter is where your MicroSims burst into life with vibrant colors, elegant shapes, and expressive text. By the time you finish, you'll have the skills to create your own personal rainbow MicroSims—interactive visualizations that dance with color and respond to your every input.

In p5.js, everything you see on the canvas is built from simple building blocks called drawing primitives. Just as an artist might use basic strokes to create a masterpiece, you'll combine rectangles, ellipses, lines, and text to craft educational simulations that are both beautiful and functional.

The Joy of Color

Color isn't just decoration—it's communication. The right colors can highlight important data, guide attention, create mood, and make learning more engaging. This chapter gives you complete control over the rainbow!

To get us started, try moving the slider in the MicroSim below. Note that as you move the slider the color swatch chances and it will show you three numbers. These are the red, green and blue color values that make up the current color.

Drawing: Rainbow Color Picker

Run the Rainbow Color Picker Fullscreen

Use the microsim-py skill to create a new microsim that displays a horizontal band of all the colors in the rainbow starting with red on the left. Add a slider in the control region that allows the user to change the color of a color swatch to the left in the control region. Display the R,G,B values to the right of the swatch and to the left of the slider. Draw a thin black rectangle outline in the rainbow over the current color.

Drawing Primitives: Your Visual Vocabulary

Drawing primitives are the fundamental shapes that form the foundation of all visual output in p5.js. Think of them as the alphabet of visual programming—simple on their own, but capable of creating infinite combinations when used together.

The core drawing primitives in p5.js include:

Rectangles (rect()) - Four-sided shapes with right angles
Ellipses (ellipse()) - Circles and ovals
Lines (line()) - Straight connections between two points
Points (point()) - Single pixels
Triangles (triangle()) - Three-sided shapes
Arcs (arc()) - Portions of ellipses
Quadrilaterals (quad()) - Four-sided shapes with any angles

For MicroSims, we use rectangles, ellipses, and lines most frequently. Let's master each one!

Rectangles with rect()

The rect() function draws rectangles—the workhorses of user interface design. Every button, slider background, control panel, and data display in our MicroSims uses rectangles.

Basic Rectangle Syntax

rect(x, y, width, height);

Parameter	Description
`x`	X-coordinate of the top-left corner
`y`	Y-coordinate of the top-left corner
`width`	Width of the rectangle in pixels
`height`	Height of the rectangle in pixels

Rectangle Examples

function setup() {
  createCanvas(400, 300);
  background(240, 248, 255);

  // Simple rectangle
  fill(255, 100, 100);  // Coral red
  rect(50, 50, 100, 80);

  // Square (equal width and height)
  fill(100, 255, 100);  // Bright green
  rect(200, 50, 80, 80);

  // Rounded rectangle (optional 5th parameter)
  fill(100, 100, 255);  // Soft blue
  rect(50, 180, 150, 60, 20);  // 20px corner radius
}

Rounded Corners

Adding a fifth parameter creates rounded corners—perfect for modern, friendly-looking buttons:

rect(x, y, width, height, radius);        // All corners same radius

You can even control the roundness of each individual corner by adding for numbers after the height!

rect(x, y, width, height, tl, tr, br, bl); // Individual corner radii

At Apple computer, Steve Jobs was famous for his instance that boxes on the Macintosh user interface had the ability to have smooth rounded corners. Research has proven that users prefer rounded corners to sharp corners. We encourage you to use this feature for ascetically pleasing designs.

Rectangle Mode

By default, rect() uses the top-left corner as the reference point. You can change this with rectMode(CENTER) to draw rectangles from their center—useful for centering shapes easily. Just be warned, if you make this change the rest of the rect() is your drawing will also do this until you change it back to the rectMode(CORNER) default value.

Ellipses with ellipse()

The ellipse() function draws circles and ovals. While rectangles feel structured and mechanical, ellipses add organic, flowing elements to your designs.

Basic Ellipse Syntax

ellipse(x, y, width, height);

Parameter	Description
`x`	X-coordinate of the center
`y`	Y-coordinate of the center
`width`	Width (horizontal diameter)
`height`	Height (vertical diameter)

Note that unlike rect(), the ellipse() function draws from the center by default!

Circle Shorthand

When width equals height, you get a perfect circle. p5.js also provides a convenient circle() function:

// These are equivalent:
ellipse(200, 150, 100, 100);  // Circle using ellipse
circle(200, 150, 100);         // Circle using circle() - diameter is 100

Using circle() makes your code a little easier to read, so it is preferred.

Colorful Circle Examples

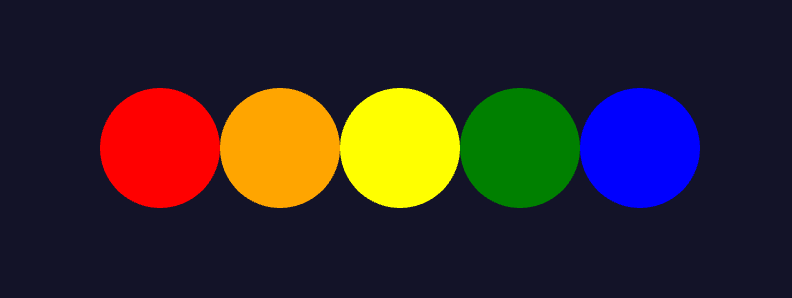

Here is an example of drawing file colored circles on a black background

// draw five colored circles on a black background
let yPos = 75;
let radius = 60;
function setup() {
  createCanvas(400, 150);
  background('black');  // Dark background for color pop
  noStroke();

  // Rainbow circles
  // add 60 to the x position of each new circle
  fill('red');
  circle(80, yPos, radius);

  fill('orange');
  circle(140, yPos, radius);

  fill('yellow');
  circle(200, yPos, radius);

  fill('green');
  circle(260, yPos, radius);

  fill('blue');
  circle(320, yPos, radius);
}

Edit this drawing using the p5.js editor

Lines with line()

The line() function draws straight lines between two points. Lines are essential for connecting elements, drawing axes, creating grids, and showing relationships.

Basic Line Syntax

line(x1, y1, x2, y2);

Parameter	Description
`x1, y1`	Starting point coordinates
`x2, y2`	Ending point coordinates

Line Style Control

Lines are styled using stroke() (color) and strokeWeight() (thickness):

function setup() {
  createCanvas(400, 200);
  background(240, 248, 255);

  // Thin black line
  stroke(0);
  strokeWeight(1);
  line(50, 50, 350, 50);

  // Thick red line
  stroke(255, 0, 0);
  strokeWeight(5);
  line(50, 100, 350, 100);

  // Rainbow gradient effect (multiple lines)
  strokeWeight(3);
  for (let i = 0; i < 7; i++) {
    stroke(i * 40, 100, 255 - i * 30);
    line(50 + i * 10, 150, 350 - i * 10, 150);
  }
}

The stroke() Function: Outlining Your Shapes

The stroke() function sets the color for lines and shape outlines. Every shape you draw has two color components:

Fill - The interior color (set with fill())
Stroke - The outline color (set with stroke())

Stroke Syntax Options

stroke(gray);              // Grayscale (0-255)
stroke(gray, alpha);       // Grayscale with transparency
stroke(r, g, b);           // RGB color
stroke(r, g, b, alpha);    // RGB with transparency
stroke('#FF5733');         // Hexadecimal color string
stroke(colorObject);       // p5.Color object

Controlling Stroke Appearance

strokeWeight(pixels);  // Line thickness
noStroke();            // Remove outline entirely

Stroke Examples

function setup() {
  createCanvas(400, 300);
  background(255);

  // Blue fill with thick red stroke
  fill(100, 150, 255);
  stroke(255, 0, 0);
  strokeWeight(4);
  rect(50, 50, 100, 80);

  // Yellow fill with no stroke
  fill(255, 255, 0);
  noStroke();
  ellipse(250, 90, 100, 80);

  // No fill, only stroke (wireframe)
  noFill();
  stroke(0, 200, 100);
  strokeWeight(2);
  rect(50, 180, 300, 60);
}

Function	Purpose
`stroke(color)`	Set outline color
`strokeWeight(n)`	Set line thickness to n pixels
`noStroke()`	Remove outlines
`noFill()`	Remove fill (transparent interior)

Shape Rendering: How p5.js Draws

Understanding shape rendering helps you control exactly how your shapes appear. p5.js renders shapes in the order you write them—later shapes draw on top of earlier ones, like layers of paint.

The Rendering Pipeline

When you call a drawing function like rect() or ellipse(), p5.js:

Checks the current fill color
Checks the current stroke color and weight
Calculates the shape geometry
Renders the fill area
Renders the stroke outline on top

This layered approach means you can create complex visuals by strategically ordering your drawing commands.

Diagram: Shape Rendering Order

<summary>Shape Rendering Order Demonstration</summary>
Type: microsim

Learning objective: Demonstrate how drawing order affects visual layering in p5.js (Bloom: Understand)

Canvas layout:
- Drawing area: 400x300 pixels with light gray background
- Control area: 50 pixels for interactive buttons

Visual elements:
- Three overlapping circles in red, green, and blue
- Circles positioned to overlap in center
- Current drawing order displayed as text
- Visual demonstration of "painter's algorithm"

Interactive controls:
- Three buttons: "Red First", "Green First", "Blue First"
- Clicking changes which circle is drawn first/last
- Shows how later shapes cover earlier ones

Behavior:
- Default: Red drawn first, then Green, then Blue (blue on top)
- Clicking "Red First" draws red first (red on bottom)
- Order text updates to show current sequence
- Helps understand layering concept

Color scheme:
- Red circle: rgba(255, 0, 0, 200)
- Green circle: rgba(0, 255, 0, 200)
- Blue circle: rgba(0, 0, 255, 200)
- Semi-transparent to show overlapping areas

Implementation: p5.js with button controls

Rendering Modes

p5.js provides different modes that change how coordinates are interpreted:

rectMode(CORNER);   // Default: x,y is top-left corner
rectMode(CENTER);   // x,y is center of rectangle
rectMode(CORNERS);  // x,y and width,height are opposite corners

ellipseMode(CENTER);  // Default: x,y is center
ellipseMode(CORNER);  // x,y is top-left of bounding box

Text Display with text(), textSize(), and textAlign()

Text is essential for MicroSims—labels, values, instructions, and feedback all rely on clear text rendering. p5.js provides powerful text functions that give you complete control over typography.

The text() Function

text(string, x, y);
text(string, x, y, maxWidth, maxHeight);  // With text box bounds

Setting Text Size with textSize()

textSize(pixels);  // Set font size in pixels

Aligning Text with textAlign()

textAlign(horizontalAlign);
textAlign(horizontalAlign, verticalAlign);

Horizontal alignment options:

LEFT - Text starts at x position (default)
CENTER - Text is centered on x position
RIGHT - Text ends at x position

Vertical alignment options:

TOP - Text top at y position
CENTER - Text middle at y position
BOTTOM - Text bottom at y position
BASELINE - Text baseline at y position (default)

Text Example: Labeled Controls

function setup() {
  createCanvas(400, 200);
  background(240, 248, 255);

  // Large centered title
  fill(50, 50, 150);
  textSize(32);
  textAlign(CENTER, TOP);
  text("Welcome to p5.js!", width/2, 20);

  // Left-aligned label
  fill(0);
  textSize(16);
  textAlign(LEFT, CENTER);
  text("Speed:", 20, 100);

  // Right-aligned value
  textAlign(RIGHT, CENTER);
  text("50", 380, 100);

  // Small footer text
  textSize(12);
  textAlign(CENTER, BOTTOM);
  fill(128);
  text("Adjust the slider to change speed", width/2, height - 10);
}

Function	Purpose	Common Values
`text(str, x, y)`	Display text at position	Any string
`textSize(n)`	Set font size	12-48 for most uses
`textAlign(h, v)`	Set alignment	LEFT, CENTER, RIGHT
`textFont(font)`	Set typeface	'Georgia', 'Courier'

Color Theory: The Science of Beautiful Palettes

Now we arrive at the heart of this colorful chapter: color theory. Understanding how colors work together transforms your MicroSims from functional to beautiful.

The Color Wheel

The color wheel is a circular arrangement of colors showing relationships between primary, secondary, and tertiary colors.

Named Colors

In addition to setting a color with an RGB or HSB value, P5.js also allow you to set the color using named colors.

Drawing: Named Colors

[Run the Color Wheel Fullscreen](../../sims/color-wheel/main.html)

Interactive Color Wheel Explorer

Type: microsim Status: Done Learning objective: Help students understand color relationships (complementary, analogous, triadic) through interactive exploration (Bloom: Understand, Analyze) Canvas layout: - Drawing area: 600 pixels high with aliceblue background - Control area: 50 pixels for mode selection Visual elements: - Large color wheel (500px diameter) in center - 12 color segments representing primary, secondary, tertiary colors - Interactive selector dot that moves around wheel - Display of selected color's RGB values - Harmony colors highlighted based on selected mode - Preview swatches showing the harmony palette Color wheel segments (clockwise from top): - Red (0°) - Red-Orange (30°) - Orange (60°) - Yellow-Orange (90°) - Yellow (120°) - Yellow-Green (150°) - Green (180°) - Blue-Green (210°) - Blue (240°) - Blue-Violet (270°) - Violet (300°) - Red-Violet (330°) Interactive controls: - Radio buttons or dropdown: "Complementary", "Analogous", "Triadic", "Split-Complementary" - Click on wheel to select a color - Drag selector around wheel Behavior by mode: - Complementary: Highlights color 180° opposite - Analogous: Highlights two adjacent colors - Triadic: Highlights colors 120° apart - Split-Complementary: Highlights two colors adjacent to complement Display elements: - Selected color swatch (large) - Harmony color swatches (smaller) - RGB/HSB values for selected color - Harmony name label Educational annotations: - Tooltips explaining each harmony type - "These colors create visual tension" for complementary - "These colors feel harmonious together" for analogous Implementation: p5.js with HSB color mode for easy angle-based color selection

Color harmonies are combinations of colors that are aesthetically pleasing. Here are the most useful harmonies for MicroSim design: | Harmony Type | Description | Best Use | |-------------|-------------|----------| | **Complementary** | Colors opposite on wheel | High contrast, emphasis | | **Analogous** | Adjacent colors | Harmony, natural feel | | **Triadic** | Three colors equally spaced | Vibrant, balanced | | **Split-Complementary** | Base + two adjacent to complement | Contrast with less tension | | **Monochromatic** | Single hue, varying brightness | Elegant, cohesive | ### HSB Color Mode: The Rainbow's Best Friend While RGB is intuitive for mixing light, **HSB (Hue, Saturation, Brightness)** is far superior for creating rainbow effects and color harmonies.

colorMode(HSB, 360, 100, 100);  // Hue: 0-360°, Sat: 0-100%, Bri: 0-100%

| HSB Component | Range | Meaning | |--------------|-------|---------| | **Hue** | 0-360 | Position on color wheel (red=0, green=120, blue=240) | | **Saturation** | 0-100 | Color intensity (0=gray, 100=vivid) | | **Brightness** | 0-100 | Light level (0=black, 100=full brightness) | ### Creating Rainbows with HSB HSB makes rainbow generation trivially easy—just loop through hue values!

function setup() {
  createCanvas(400, 200);
  colorMode(HSB, 360, 100, 100);
  noStroke();

  // Draw rainbow bars
  let barWidth = width / 360;
  for (let h = 0; h < 360; h++) {
    fill(h, 100, 100);  // Full saturation and brightness
    rect(h * barWidth, 0, barWidth + 1, height);
  }
}

This simple loop creates a full spectrum rainbow! The magic is that hue values map directly to positions on the color wheel. ## MicroSim: Your Personal Rainbow Generator Now let's put everything together! This MicroSim lets you create your own rainbow patterns with interactive controls for every aspect of the color. #### Diagram: Personal Rainbow Generator MicroSim

Personal Rainbow Generator MicroSim

Type: microsim Learning objective: Apply color theory and drawing primitives to create personalized rainbow visualizations (Bloom: Apply, Create) Canvas layout: - Drawing area: 400x300 pixels with dark background (#1a1a2e) - Control area: 100 pixels for sliders and buttons Visual elements: - Rainbow arc or bars (user selectable) - Smooth color gradient using HSB color mode - Reflection effect below rainbow (optional toggle) - Particle/sparkle effects (optional) - Current palette preview strip Interactive controls: 1. Slider: "Start Hue" (0-360) - Where rainbow begins 2. Slider: "End Hue" (0-360) - Where rainbow ends 3. Slider: "Saturation" (0-100) - Color vividness 4. Slider: "Band Count" (3-24) - Number of color bands 5. Toggle button: "Arc / Bars" - Shape style 6. Toggle button: "Add Sparkles" - Particle effects 7. Button: "Randomize" - Generate random palette 8. Button: "Export" - Copy color values Rainbow styles: - Arc: Classic semi-circular rainbow using arc() function - Bars: Vertical color bars across canvas - Each style uses current slider values Animation features: - Subtle shimmer animation on colors - Floating sparkle particles when enabled - Smooth transitions when parameters change Behavior: - Adjusting Start/End Hue changes color range - Low saturation creates pastel rainbows - Band Count changes from smooth gradient to distinct bands - Randomize picks pleasing random values - Export shows array of hex color values Code structure:

let startHue, endHue, saturation, bands;

function setup() {
  createCanvas(400, 400);
  colorMode(HSB, 360, 100, 100);
  // Create sliders...
}

function draw() {
  background(26, 26, 46);

  let hueStep = (endHue - startHue) / bands;
  for (let i = 0; i < bands; i++) {
    let hue = startHue + i * hueStep;
    fill(hue, saturation, 100);
    // Draw arc or rect based on mode
  }
}

Educational emphasis: - Shows practical application of HSB color mode - Demonstrates how sliders control visual output - Encourages experimentation with color - Creates shareable, personalized results Accessibility: - describe() function for screen readers - High contrast control labels - Slider values displayed numerically Implementation: p5.js with createSlider() and createButton()

This MicroSim brings together everything in this chapter: rectangles for the control area, ellipses/arcs for the rainbow shape, lines for accents, text for labels, stroke for outlines, and color theory for beautiful palettes! ## MicroSim: Shape Playground Before creating complex simulations, it helps to experiment with drawing primitives in an interactive environment. #### Diagram: Shape Playground MicroSim

Interactive Shape Playground

Type: microsim Learning objective: Practice using drawing primitives (rect, ellipse, line) with immediate visual feedback (Bloom: Apply) Canvas layout: - Drawing area: 400x300 pixels with light background - Control area: 100 pixels for shape selection and parameters Visual elements: - Currently selected shape rendered at mouse position or center - Shape preview panel showing all available shapes - Parameter values displayed in real-time - Grid overlay (toggleable) for positioning reference Interactive controls: 1. Radio buttons: "Rectangle", "Ellipse", "Line", "Triangle" 2. Slider: "Width" (10-200) 3. Slider: "Height" (10-200) 4. Slider: "Fill Hue" (0-360, HSB mode) 5. Slider: "Stroke Weight" (0-10) 6. Checkbox: "Show Grid" 7. Button: "Random Shape" Behavior: - Selected shape follows mouse in drawing area - Clicking stamps shape at current position - Sliders update shape properties in real-time - Grid helps understand coordinate positioning - Clear button removes all stamped shapes Shape-specific behavior: - Rectangle: width and height as set - Ellipse: width and height as set - Line: click and drag to set endpoints - Triangle: three clicks to set vertices Display text: - Current mouse coordinates - Shape function call (e.g., "rect(156, 89, 80, 60)") - This teaches syntax while experimenting Color scheme: - Drawing area: white with optional grid - Control area: light gray - Grid lines: very light gray (#EEEEEE) Educational emphasis: - Shows exact function calls for shapes - Builds intuition for coordinates - Encourages experimentation Implementation: p5.js with radio buttons and sliders

## Combining Primitives: Building Complex Shapes Real MicroSims combine multiple primitives to create meaningful visualizations. Here's how to think about composition: ### Layered Construction Build complex shapes from simple ones, drawing background elements first:

function drawButton(x, y, w, h, label) {
  // Shadow layer (drawn first, appears behind)
  fill(100);
  noStroke();
  rect(x + 3, y + 3, w, h, 8);

  // Button body
  fill(70, 130, 220);
  stroke(50, 100, 180);
  strokeWeight(2);
  rect(x, y, w, h, 8);

  // Button text (drawn last, appears on top)
  fill(255);
  noStroke();
  textAlign(CENTER, CENTER);
  textSize(16);
  text(label, x + w/2, y + h/2);
}

### Creating Custom Shapes with beginShape() For shapes beyond the primitives, use vertex-based drawing:

function setup() {
  createCanvas(400, 300);
  background(240, 248, 255);

  fill(255, 200, 100);
  stroke(200, 150, 50);
  strokeWeight(2);

  // Draw a star using vertices
  beginShape();
  for (let i = 0; i < 10; i++) {
    let angle = TWO_PI * i / 10 - HALF_PI;
    let radius = (i % 2 === 0) ? 80 : 40;
    let x = 200 + cos(angle) * radius;
    let y = 150 + sin(angle) * radius;
    vertex(x, y);
  }
  endShape(CLOSE);
}

## Practical Application: MicroSim Control Panel Let's apply everything to create a reusable control panel pattern:

// Drawing a standard MicroSim control panel
function drawControlPanel(y, height) {
  // Panel background
  fill(255);
  stroke(200);
  strokeWeight(1);
  rect(0, y, width, height);

  // Subtle top border
  stroke(180);
  strokeWeight(2);
  line(0, y, width, y);
}

function drawLabeledSlider(label, value, x, y) {
  // Label text
  fill(60);
  noStroke();
  textSize(14);
  textAlign(LEFT, CENTER);
  text(label, x, y);

  // Value display
  textAlign(RIGHT, CENTER);
  text(value.toFixed(1), x + 280, y);
}

This pattern appears in nearly every MicroSim—a clean white control area with labeled sliders showing current values. ## Key Takeaways Congratulations! You've completed the most colorful chapter in this book. Here's what you've mastered: 1. **Drawing Primitives** are your visual vocabulary: `rect()`, `ellipse()`, `line()`, and more. 2. **rect()** draws rectangles from the top-left corner (or center with `rectMode(CENTER)`), with optional rounded corners. 3. **ellipse()** draws from the center by default, with width and height parameters for circles and ovals. 4. **line()** connects two points, styled with `stroke()` and `strokeWeight()`. 5. **stroke()** sets outline color; use `noStroke()` to remove outlines entirely. 6. **Shape Rendering** follows painter's algorithm—draw order determines layering. 7. **text()** displays strings, with `textSize()` for font size and `textAlign()` for positioning. 8. **Color Theory** helps you create harmonious palettes using complementary, analogous, and triadic relationships. 9. **HSB Color Mode** makes rainbows easy—just loop through hue values from 0 to 360! 10. **Combining primitives** with thoughtful layering creates professional-looking interfaces. ??? question "Challenge: What HSB values would you use to create a sunset palette?" A sunset palette uses warm hues in the red-orange-yellow range (0-60°), with varying saturation (60-100%) and brightness (70-100%). Try: `fill(30, 90, 100)` for orange, `fill(0, 80, 90)` for coral, and `fill(50, 100, 100)` for golden yellow! ## Next Steps You now have the skills to create visually stunning MicroSims with complete control over shapes, text, and color. In the next chapter, we'll add **interactivity**—sliders, buttons, and mouse events that let users explore simulations hands-on. Go experiment with your new rainbow powers! Try creating: - A color picker with HSB sliders - A drawing app with shape stamps - An animated rainbow that cycles through hues - A mood board with complementary color pairs - A text-based data display with styled labels The canvas is your palette. Paint something wonderful! ## References For deeper exploration of color and design: - [p5.js Color Reference](https://p5js.org/reference/#group-Color) - Complete color function documentation - [Adobe Color](https://color.adobe.com) - Interactive color wheel and palette generator - [Coolors](https://coolors.co) - Fast palette generation tool - [Color Theory Fundamentals](https://www.interaction-design.org/literature/topics/color-theory) - Academic overview - [HSB vs RGB](https://learnui.design/blog/the-hsb-color-system-practicioners-primer.html) - Practical guide to HSB
