Using The MicroSim P5 Skill with Anthropic Claude

By Dan McCreary October 23, 2025

Overview

This comprehensive guide demonstrates how to use Claude Skills to generate high-quality, interactive MicroSims for educational purposes. This tutorial covers:

• What is a Claude Skill?
• Loading the MicroSim-p5 skill into Claude's Capabilities
• Using the Skill to generate a p5.js file
• Testing the p5.js MicroSim with the p5.js editor
• Generating a full MicroSim package
• Installing the package in your intelligent book
• Testing the MicroSim package in your textbook
• Adding a Social Media Preview Image

What is a Claude Skill?

A Claude Skill is a highly detailed set of rules for executing specific tasks. Think of it as a specialized instruction manual that Claude can reference when performing particular types of work.

Key characteristics of Claude Skills:

• Standardized by Anthropic in October 2025
• Portable - Stored in a zip file that can be quickly added to your Anthropic settings
• Easy to use - Works with both the Claude webpage and the Terminal using Claude Code
• Available with the Pro ($20/month) plan and other more expensive plans

For more information, visit: https://www.anthropic.com/news/skills

How Skills Work with Agents

Building an entire intelligent textbook is a complex process requiring careful planning, the creation of detailed workflows with human feedback and the decomposition of workflows into small discrete tasks.
Once we have a task clearly defined, we need to match it to a set of complex content generation rules. We use the name skill as a packaging systems for the rules associated with a given task.

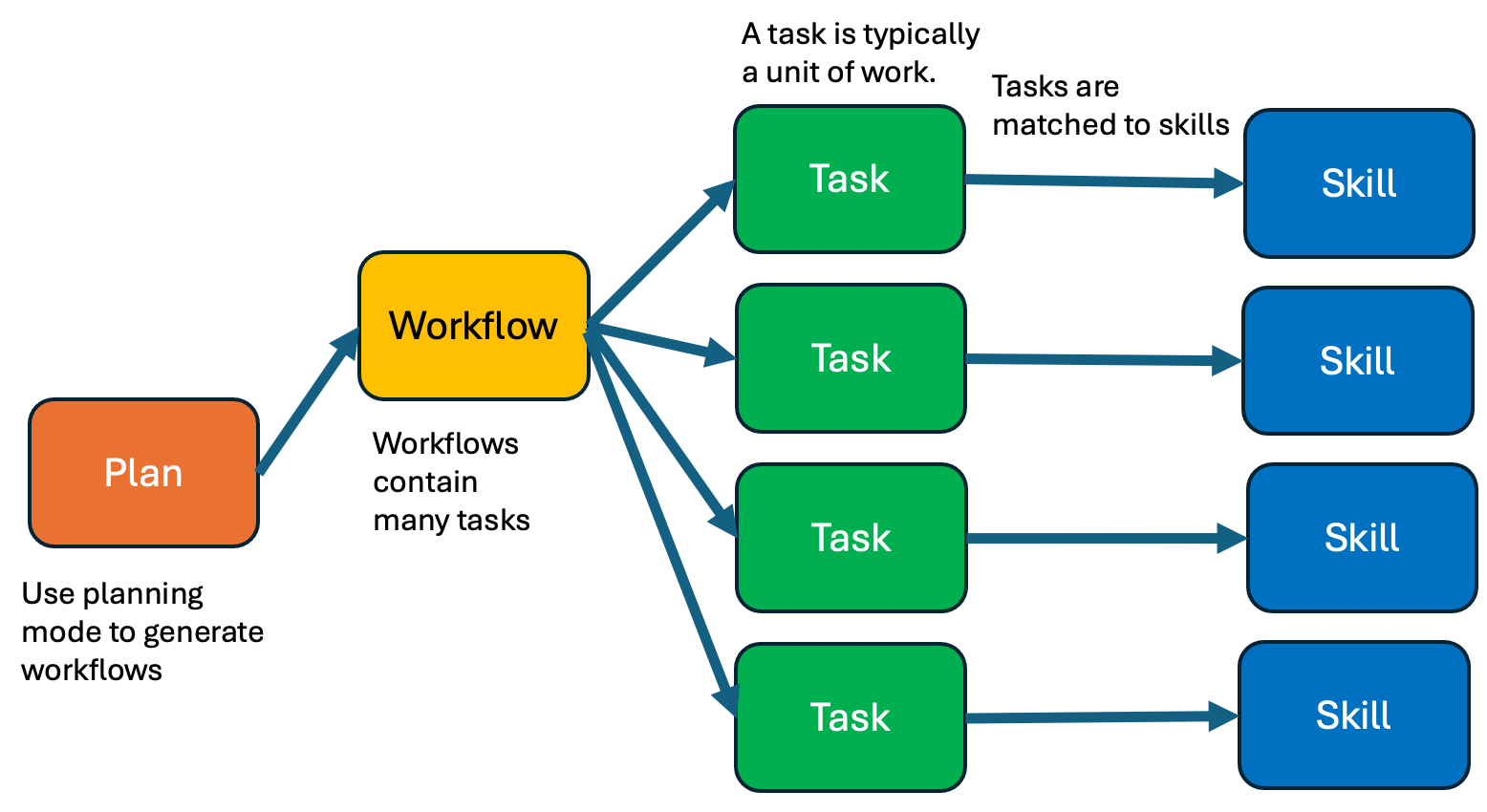

A description of this workflow is shown below:

Claude uses an intelligent task-matching system for skills:

While working on tasks, Claude scans available skills to find relevant matches. When one matches, it loads only the minimal information and files needed—keeping Claude fast while accessing specialized expertise.

Workflow Diagram

Plan

Generative AI have strong planning mode to generate an overall strategy for the MicroSim. This plan uses rules of good instructional design to create a great user experience for students.

Workflows

Contain many tasks that are all connected in a specific order. Between tasks there may be decision points and iteration to verify correctness.

Task

A unit of work that can be matched to a single Skill.

Skill

A set of rules for completing a task.

This architecture ensures efficient resource usage while maintaining access to specialized knowledge.

Sample MicroSim Created by Skill

Here's an example of what the MicroSim-p5 skill can create with a simple prompt.

Here is the prompt that was used to create this skill.

Prompt

Using the MicroSim-p5 skill, create a new MicroSim that demonstrates the effect of gravity on projectile motion.
Name the MicroSim "projectile-motion-gravity". A canon is located in the lower left that shoots a ball. The MicroSim has a "Fire" and a "Reset" button and a single range control slider to change the gravity.
Each time the user presses "Fire" a parabolic path is drawn with a dashed line. The lines are only erased when the "Reset" button is pressed.

Note

Some of the controls were not placed correctly in the control area. The x coordinate of several controls were edited manually. The rest of the code was correctly generated.

What the MicroSim Creates

When you use the MicroSim-p5 skill, Claude generates a complete package including:

• 427-line width-responsive p5.js application
• 121-line index.md file that includes a user guide and lesson plan
• 12-line main.html driver file
• 427-line metadata.json file for search optimization

All files follow consistent patterns and best practices for educational simulations.

Here's the complete list of the steps for using the MicroSim-p5 skill:

1. Step 1: Download MicroSim-p5 Skill from the MicroSim GitHub - This will place the MicroSim-p5.zip file to your local hard drive
2. Step 2: Upload the MicroSim-p5 Skill to Claude - the skill file to your Anthropic Settings Capabilities
3. Step 3: Reference the Skill In Your Prompt - "Using the MicroSim-p5 skill..." to your prompt:
4. Example: "Using the MicroSim-p5 skill create a new MicroSim that will show the effect of gravity on projectile motion. Have a slider change the gravity."
5. Step 4: Download your new MicroSim zip file to your local hard drive download the zip file that Claude creates
6. Step 5: Test the new JavaScript File in the p5 Editor open the zip file and copy the JavaScript using the p5.js editor
7. Step 6: Intall the Package in your textbook Place the files in the sims folder of your textbook
8. Step 7: Create a Social Media Preview

Note: Claude Code, the Terminal version of Claude, can also use these skills and automatically install the MicroSim in your book.

Detailed Step-by-Step Instructions

Step 1: Download the MicroSim p5 Skill from the MicroSim GitHub site to Your Local System

To begin, you need to download the MicroSim-p5 skill file:

Go to: https://github.com/dmccreary/microsims/blob/main/skills/microsim-p5.zip

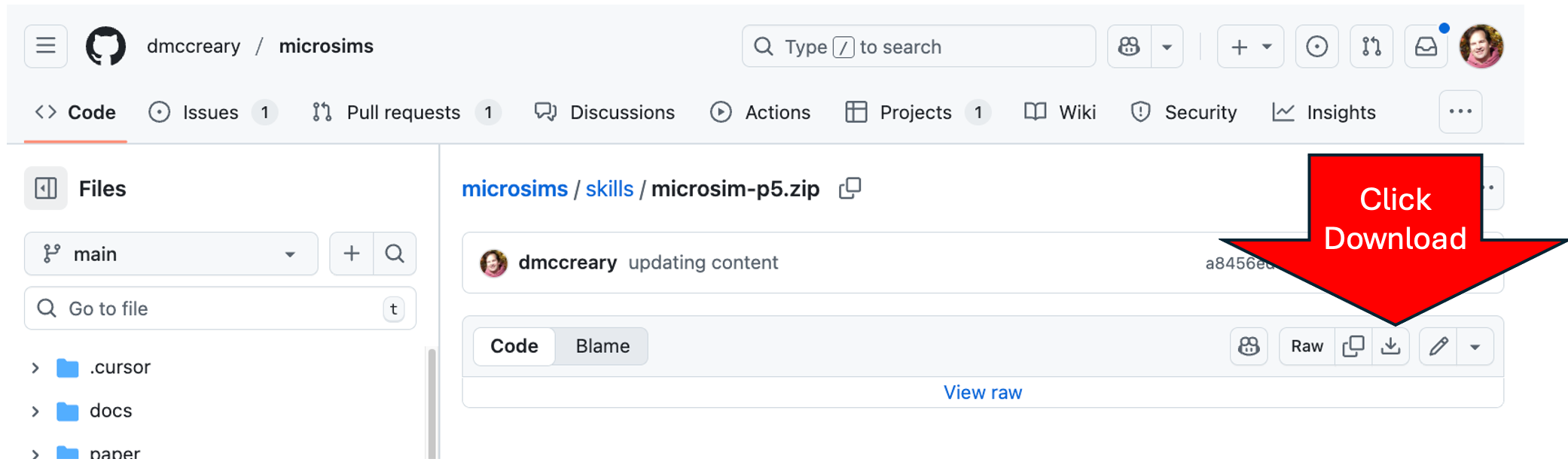

Click the download icon to save the microsim-p5.zip file to your local system.

Step 2: Upload the MicroSim-p5 Skill to Claude

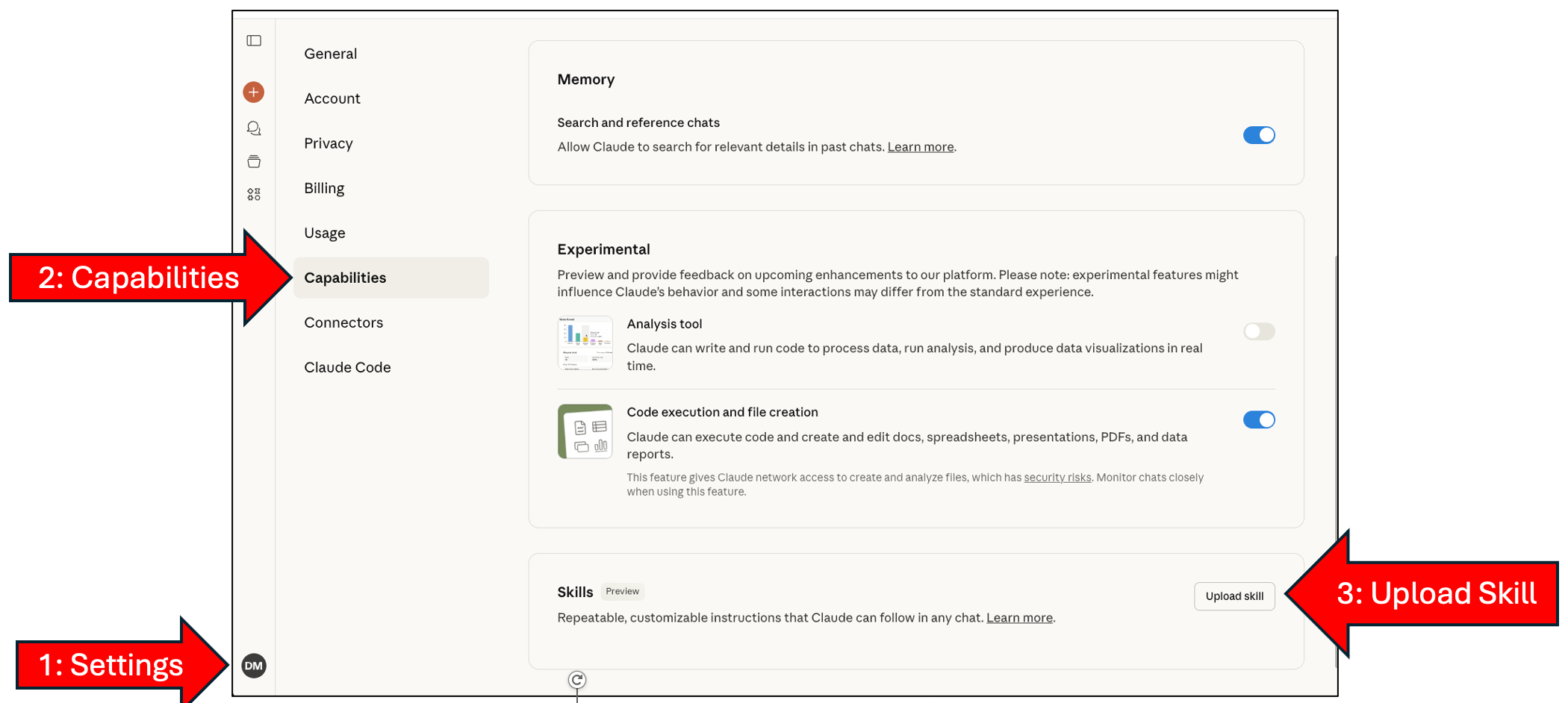

Navigate to the Claude Settings Capabilities Menu:

CLICK HERE: http://claude.ai/settings/capabilities

In the Skills area, click the "Upload skill" button.

This page allows you to manage all your Claude capabilities, including Skills, Experimental features, and Connectors.

Once you're on the capabilities page with the Skills section open:

1. Locate the upload area for skills
2. Drag and drop the microsim-p5.zip file you downloaded

The skill will be uploaded and processed automatically. You will then see a confirmation such as the following:

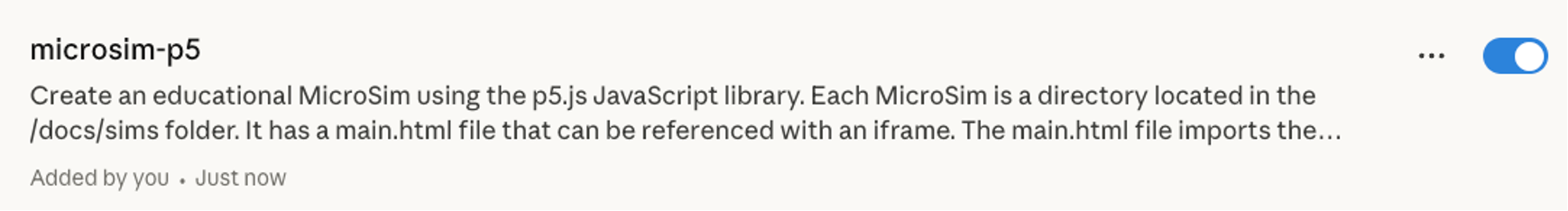

After successful upload, you'll see a confirmation message indicating that the MicroSim-p5 skill has been added to your account.

The skill is now ready to use in your Claude conversations!

Step 3: Reference the MicroSim-p5 Skill in Your Prompt

Now you can start using the skill. Here's a sample prompt we described above:

Prompt

Using the MicroSim-p5 skill, create a new MicroSim that demonstrates the effect of gravity on projectile motion.
Name the MicroSim "projectile-motion-gravity". A canon is located in the lower left that shoots a ball. The MicroSim has a "Fire" and a "Reset" button and a single range control slider to change the gravity.
Each time the user presses "Fire" a parabolic path is drawn with a dashed line. The lines are only erased when the "Reset" button is pressed.

Note

Some of the controls were not placed correctly in the control area. The x coordinate of several controls were edited manually. The rest of the code was correctly generated.

Note: It's important to specify the name of your MicroSim so Claude knows what to call the folder and files.

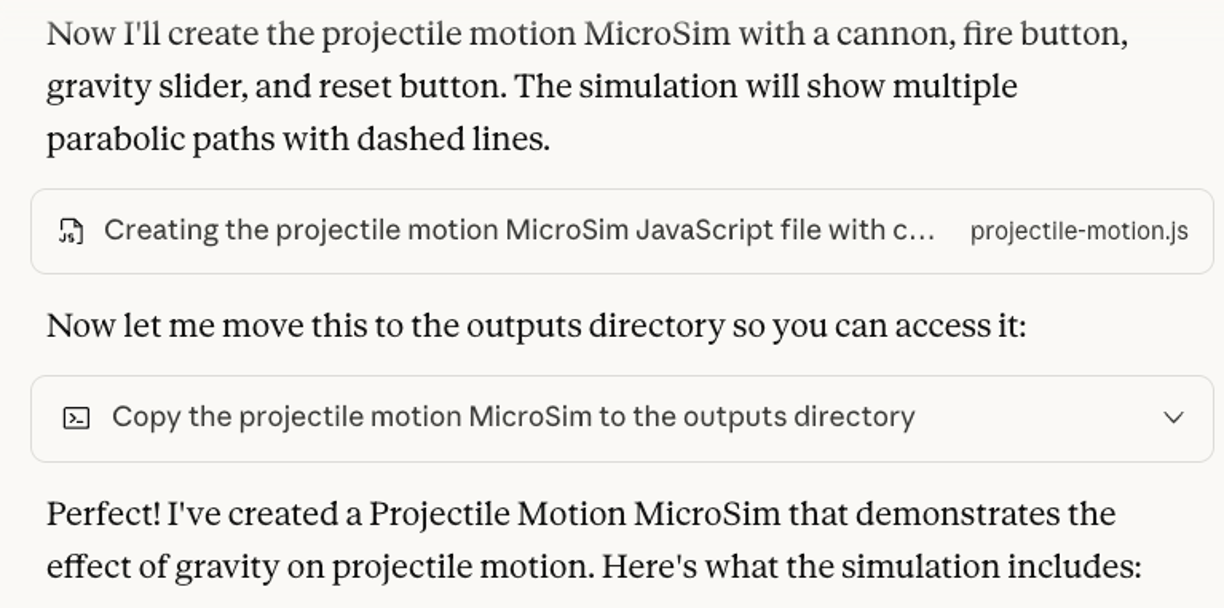

Here is a sample response dialog from Claude:

Claude will respond with a detailed implementation, including:

• Complete p5.js code
• Explanation of the physics
• User guide
• Implementation notes

The output follows all the conventions and patterns defined in the MicroSim-p5 skill.

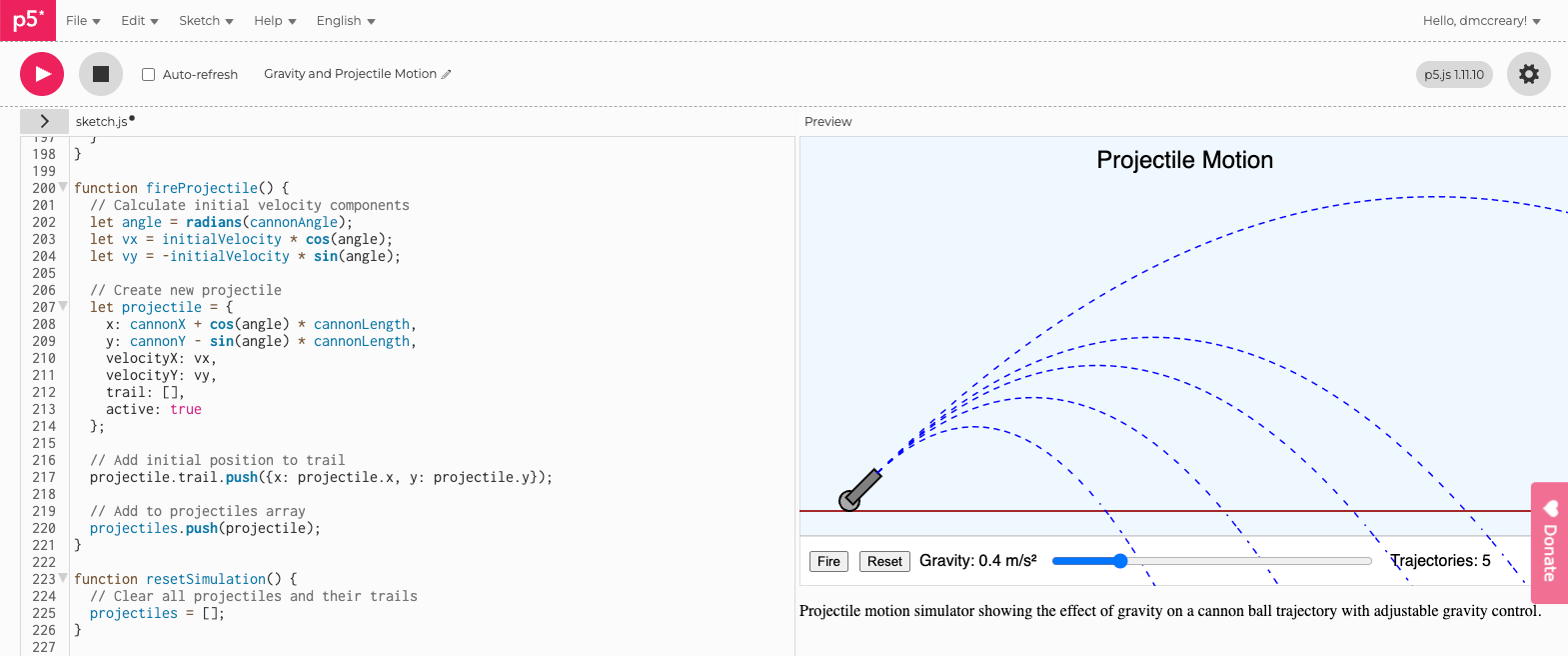

Step 4: Testing the New MicroSim with the p5.js Editor

Before integrating into your textbook, test the MicroSim using the p5.js online editor:

Example: https://editor.p5js.org/dmccreary/sketches/-aDDLBBD8

The p5.j editor allows you to: - Test interactivity - Verify responsive behavior - Make adjustments in layout before deployment - Share directly from the editor

Note on Control Placement

Important Caveat:

LLMs are not always perfect at the exact placement of UI controls. In this example, Claude made mistakes placing the button and slider controls in the controls area of the MicroSim.

You may need to manually adjust: - X-position of sliders in the control region - Button placement - Label alignment

Future Improvement: Specific rules will be added to the skill to prevent these errors in the next version.

Step 5 Share Your MicroSim Directly from p5.js

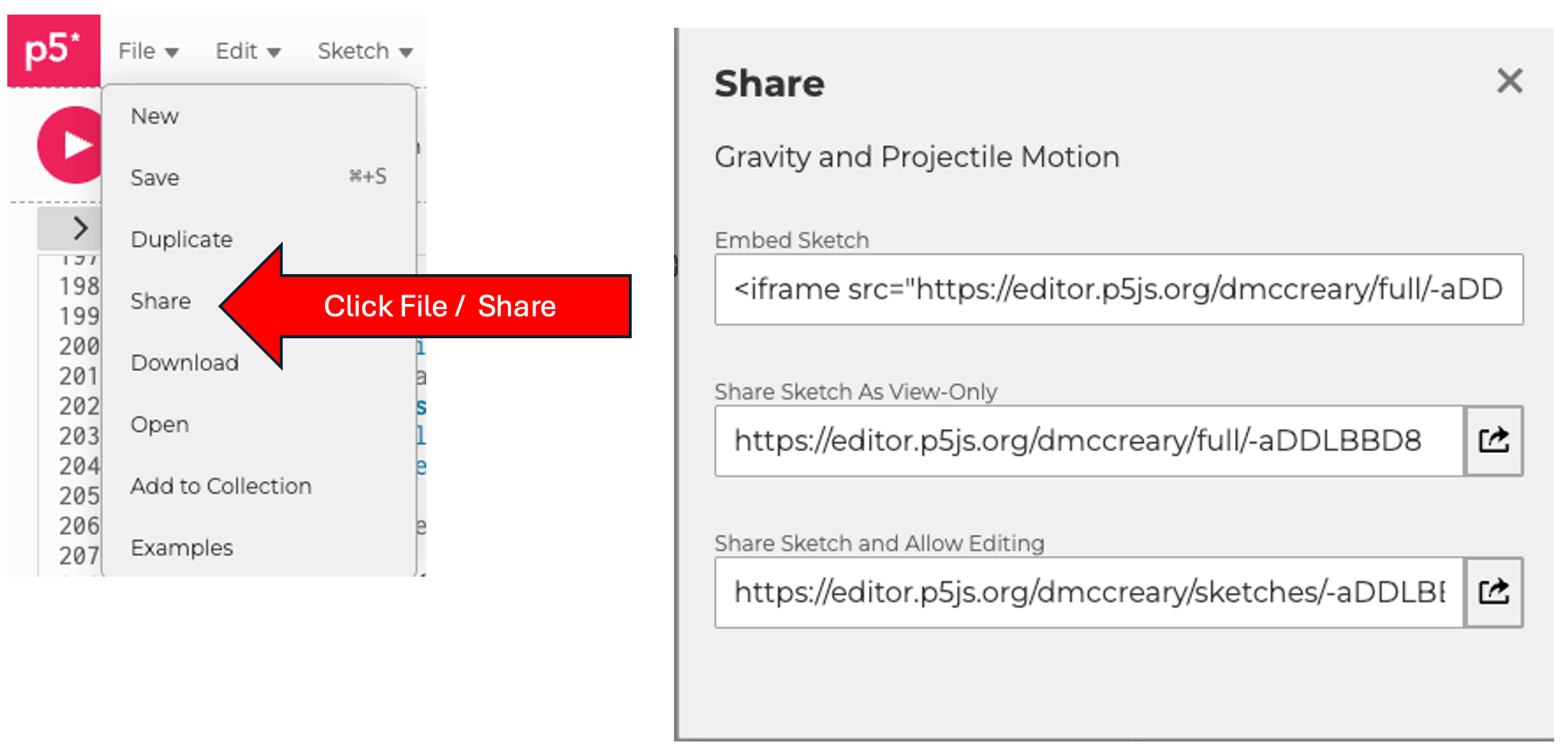

Within the p5.js editor there is a File menu in the upper left corner. After you click on the File menu it will then present a drop-down menu with the Share option. By Clicking that it will open a window that allows you to share the new MicroSim after a Save has been done.

The p5.js editor makes it easy to share your work in three ways:

Embed Iframe

In this mode, you just add a single iframe to your website. This is ideal for authors that want to embed a MicroSim in a region of their web page.

<iframe src="https://editor.p5js.org/dmccreary/full/-aDDLBBD8"></iframe>

Share URL for Full Screen for Execution but No Editing (Read Only)

https://editor.p5js.org/dmccreary/full/-aDDLBBD8

This mode is ideal if you want to provide a link to the MicroSim such as in a webpage, email or chat. In this mode, you can run the MicroSim but you can't see or edit the source code.

Share with Full Editing:

https://editor.p5js.org/dmccreary/sketches/-aDDLBBD8

This generates a shareable link to your MicroSim that others can view and remix.

---

Integrating Into a Textbook

The following steps are for integrating your MicroSim into an intelligent textbook:

Intelligent textbooks put MicroSims "inline" into chapters of online books. They use a specific folder and file structure that facilitates sharing.

The MicroSim skill generates three additional files for textbook integration:

• Sample main.html file
• Sample index.md containing user guide and lesson plans
• Sample metadata.json to facilitate search in MicroSim search engines

The main JavaScript file (bouncing-ball.js) can then be modified and versioned as needed.

Integrating into Web Pages is Easy!

Adding any MicroSim to a web page requires just one line of HTML:

<iframe
   src="https://dmccreary.github.io/microsims/sims/projectile-motion-gravity/main.html"
   height="452px"
   scrolling="no">
</iframe>

This iframe element allows you to securely add the file to your webpage.

Benefits: - Can be added without jeopardizing the security of your site - The simulation runs in a secure "sandbox" - You do not need to make other changes to your website - You can use CSS to style the border of the iframe

Generate the MicroSim Package Zip File

To get all the supporting files (not just the JavaScript), request a complete package:

Prompt

Please generate a complete MicroSim package with all supporting files.

This forces the skill to generate not just the JavaScript, but all the supporting files in a MicroSim package.

Sample Dialog for Package Generation

Claude will generate the complete package and provide a download link.

CLICK HERE to download the complete package as a zip file.

Download the MicroSim Package that Claude Created

Click the download link to save the MicroSim package to your computer.

The package will download as projectile-motion.zip (or whatever name you specified).

Unzip the MicroSim Package

Move and/or rename the extracted files to your textbook directory:

$ cd /tmp
$ mv projectile-motion $BOOK/docs/sims/projectile-motion-gravity

Note: Remove the zip file when you're done. The zip file should not be checked into your textbook site.

Add to Navigation in mkdocs.yml

Update your MkDocs configuration to include the new MicroSim in the navigation:

- Projectile Motion With Gravity: sims/projectile-motion-gravity/index.md

Add this line in the nav: section, indented with the other sims.

Optional: Social Media Preview

You can add a social media preview image that will appear when you share the MicroSim link:

This image will show when you: - Copy the link into a chat - Share on Messenger, Slack, Discord, or Zoom - Reference the MicroSim on Facebook, Twitter, or LinkedIn

To enable this feature: 1. Take a screen image of the MicroSim 2. Place it in the MicroSim folder with the same name as the folder: - Example: projectile-motion-gravity.png

Note: A future version of the skill might render the MicroSim and capture a screen image automatically. However, for now this is a manual step.

Sample Metadata in HTML Head

The social media preview requires Open Graph (og) metadata in the HTML head element. All Open Graph elements have the "og:" prefix in their property.

<meta property="og:image"
      content="https://dmccreary.github.io/microsims/sims/projectile-motion-gravity/projectile-motion-gravity.png">

This tag tells social media platforms which image to display when sharing your link.

Sample Metadata in the index.md

The index.md file also includes metadata for the preview image:

Note: The path names are all relative to the /docs directory. You do not need to put in the full path.

---

Test the Social Media Preview

There are many free websites that will test if the right metadata tags are placed correctly in the HTML header.

Example: https://socialsharepreview.com/

Paste the URL of your MicroSim here to see how it will appear when shared on social media.

---

Positive Result!

When properly configured, your preview will look great:

For further details, you can search for Open Graph standards for title, description, and images.

---

OG Tags Advice

The social media preview validator will provide feedback:

Common recommendations: - Our title and description are fine - The ideal ratio for social preview images is 1.91:1 (width to height) - Recommended dimensions: 1200 x 628 pixels

---

Claude Generates Massive Metadata!

Given a robust JSON Schema, Claude will generate fantastic, highly detailed metadata that can be used to analyze and extend a MicroSim.

Key benefits: - The schema is an exhaustive list of fields that Claude will happily fill in for each MicroSim - Metadata is critical for building faceted search tools for MicroSims - Enables powerful discovery and categorization

Schema location: https://github.com/dmccreary/microsims/blob/main/src/microsim-schema/microsim-schema.json

---

Sample Metadata File (metadata.json)

Here's what a complete metadata file looks like:

This file contains comprehensive information about the MicroSim, making it discoverable and useful for educational purposes.

---

How To View Metadata

To view the metadata for any MicroSim, simply add /metadata.json to the end of the path:

Example: https://dmccreary.github.io/microsims/sims/projectile-motion-gravity/metadata.json

---

What is in the metadata.json File

The metadata file includes:

Dublin Core (standard library catalog information): - Title, creator, subject, description - Publisher, date, type, format - Language, rights

Education Standards: - NGSS (Next Generation Science Standards) - Common Core Math (e.g., "HSF-IF.B.4")

License: - CC BY 4.0 - Creative Commons Attribution 4.0 International

Grade Levels: - Target: 6th to 12th grades

Subjects: - Physics, Science, Mathematics

Topics: - Projectile Motion - Gravity - Parabolic Trajectories - Kinematics - Newton's Laws - Acceleration

---

Metadata Contents (Continued)

Learning Objectives:

The metadata includes detailed, measurable learning objectives:

• Understand that gravity affects the vertical motion of projectiles
• Apply concepts of parabolic motion to predict trajectory shapes
• Analyze how changes in gravity affect projectile range and height
• Evaluate the relationship between gravitational acceleration and trajectory characteristics
• Compare projectile motion under different gravitational conditions

---

Metadata Contents (Continued)

Additional Fields:

Prerequisites: - Required prior knowledge

Duration: - Estimated times (typical, minimum, maximum)

Difficulty: - Level indicators

Curriculum Standards: - Framework, ID, description

Technical Details: - JavaScript library and version - Responsive design capabilities - Browser compatibility analysis - Accessibility features

---

Metadata (Continued)

User Interface Details:

List of UI Controls: - Buttons (Start, Pause, Reset) - Sliders (ranges and purposes)

Visual Elements: - Diagram components - Animation features - Text elements

Simulation Types: - Physics simulations - Equations used - Algorithms implemented

Model Assumptions: - No friction - No wind resistance - Vacuum environment - Point mass projectile

Possible Variations: - Initial velocity adjustments - Launch angle modifications - Projectile type changes

Scenarios: - Earth gravity (9.8 m/s²) - Moon gravity (1.6 m/s²) - Mars gravity (3.7 m/s²) - Space (0 m/s²)

Analytics for AI Textbooks: - Events tracked (start, stop, adjust, reset) - Metrics (engagement time, number of adjustments)

---

Metadata (Continued)

Pedagogical Information:

Recommended Usage: - Demonstrations - Exploration activities - Guided practice - Group activities - Individual study

Instructional Strategies: - Inquiry-based learning - Problem-solving approaches - Visualization techniques

Assessment Questions: - Question types - Difficulty levels - Bloom's taxonomy alignment

Extensions: - What UI components could be added? - How could the simulation be enhanced? - Related concepts to explore

---

Conclusion

Using Claude Skills can make MicroSim generation MUCH easier for non-programmers.

Key Takeaways:

• Fast Generation: Some simple MicroSims can be generated in under five minutes
• May Need Tweaking: The layouts may not be perfect and may require adjustments in the placement of controls
• Rich Metadata: The skill prompts Claude to generate a large number of precise metadata elements for each MicroSim
• Claude Code Integration: Claude Code can be used to quickly iterate these designs, though it can be challenging for non-programmers
• Easy Integration: Using a MicroSim in any web-based textbook is as simple as adding a single line of HTML (iframe)

---

Thank You!

Resources:

• Feedback, Bugs, Enhancements: https://github.com/dmccreary/microsims/issues

• Questions: Please connect with me on LinkedIn https://www.linkedin.com/in/danmccreary/

---

Additional Resources

For more information about the MicroSims project:

• MicroSim Documentation: See CLAUDE.md in the project root
• Cursor Rules: Check .cursor/rules/microsims.mdc for detailed patterns
• Metadata Schema: src/microsim-schema.json
• Example Simulations: Browse docs/sims/ directory
• Gallery: View all simulations at /sims/gallery.md
• MicroSim Skill File: Download from skills/microsim-p5.zip in the repository

Next Steps

1. Download and upload the MicroSim-p5 skill to Claude
2. Try generating a simple simulation to test the skill
3. Test in the p5.js online editor
4. Iterate and refine based on the output
5. Generate the complete package
6. Validate the generated code and metadata
7. Add the new simulation to your textbook
8. Share your simulation with educators and students!
