Hey, Dan!

I'm starting a project, and would love your help with it, if you have the time.

I'm in need of a small, color-changing campfire that I can set on top of a wooden table- I was thinking about doing something with programmable RGB LEDs. Probably some actual wooden sticks, semi-transparent cellophane, and a bunch of hot glue to make the structure.

What I really need help with is getting the lighting controls settled and potentially incorporating some flickering effects.

Let me know what you think, and if you can help!

Thanks! - Jake

In further discussions, we found it would be useful to change the patterns for different versions of the game.

Design

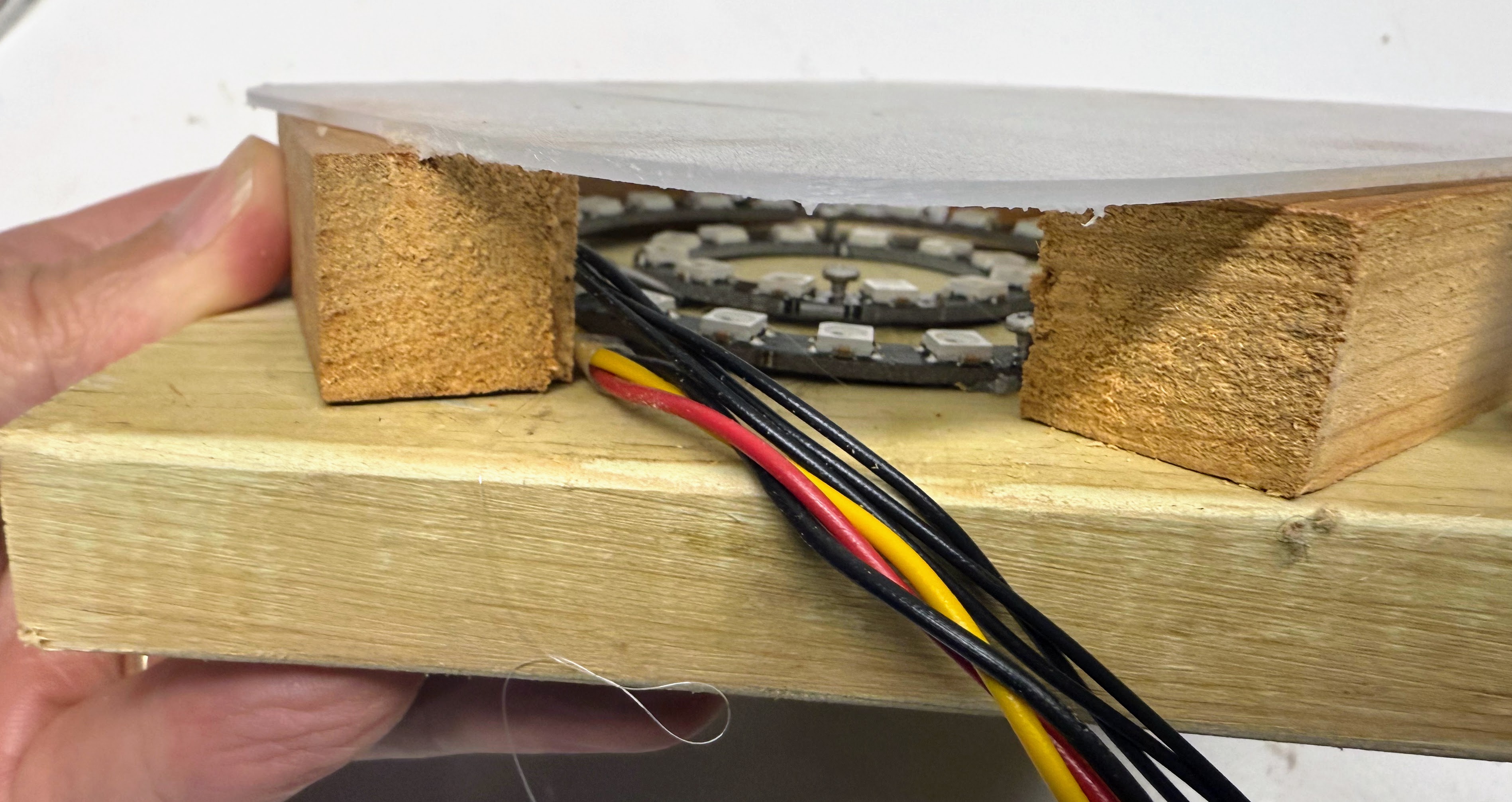

I used two NeoPixel rings. The outer one had 24 pixels and the inner ring had 12 pixels. I covered them with a thin translucent sheet of diffusion material.

Sample Code

# Simple Fire Effect for Pattern Integration
# Can be easily added to your main-demo-cycle.py
from machine import Pin, ADC
from neopixel import NeoPixel
from utime import sleep
from urandom import randint

import dual_ring_config

pot = ADC(dual_ring_config.POT_PIN)

NUMBER_PIXELS0 = dual_ring_config.NUMBER_PIXELS0
NUMBER_PIXELS1 = dual_ring_config.NUMBER_PIXELS1

# 24 pixels
strip0 = NeoPixel(Pin(dual_ring_config.NEOPIXEL_PIN0), NUMBER_PIXELS0)
# 12 pixels
strip1 = NeoPixel(Pin(dual_ring_config.NEOPIXEL_PIN1), NUMBER_PIXELS1)

def wheel(pos):
    # Input a value 0 to 255 to get a color value.
    # The colors are a transition r - g - b - back to r.
    if pos < 0 or pos > 255:
        return (0, 0, 0)
    if pos < 85:
        return (255 - pos * 3, pos * 3, 0)
    if pos < 170:
        pos -= 85
        return (0, 255 - pos * 3, pos * 3)
    pos -= 170
    return (pos * 3, 0, 255 - pos * 3)

def standard_fire(delay):
    for i in range(0, NUMBER_PIXELS0):
         green = 50 + randint(0,155)
         red = green + randint(25,50)
         strip0[randint(0,NUMBER_PIXELS0 - 1)] = (red, green, 0)
    strip0.write()
    for i in range(0, NUMBER_PIXELS1):
         green = 50 + randint(0,155)
         red = green + randint(25,50)
         strip1[randint(0,NUMBER_PIXELS1 - 1)] = (red, green, 0)
    strip1.write()
    sleep(delay)

def simulate_fire_pattern(pattern_number, delay):

    # TODO: Check that the pattern number is in the range of 0 to 7

    if (pattern_number == 0):
        standard_fire(delay)
    else:
        color_1 = (wheel(pattern_number * 16 + randint(0,16) % 255))
        color_2 = wheel((pattern_number * 16 + 128 + randint(0,16) % 256))
        for i in range(NUMBER_PIXELS0):
            strip0[i] = (color_1)
        strip0.write()
        for i in range(NUMBER_PIXELS1):
            strip1[i] = (color_2)
        strip1.write()
        sleep(delay)

# Erase all the pixels
def clear():
    for i in range(NUMBER_PIXELS0):
        strip0[i] = (0, 0, 0)
    strip0.write()
    for i in range(NUMBER_PIXELS1):
        strip1[i] = (0, 0, 0)
    strip1.write()

# Run the effect
try:
    print("Fire effect running - Press Ctrl+C to stop")
    while True:
        # shift over 13 bits to get a value from 0 to 7
        pattern = pot.read_u16() >> 13
        print(pattern, end=" ")
        simulate_fire_pattern(pattern, 0.1)
except KeyboardInterrupt:
    print("\nStopping fire effect")
    clear()

You can find the full source code and some unit tests here:

Code Walk Through

Let's break down this fire simulation code step-by-step to understand how it creates realistic flickering fire effects on two NeoPixel rings.

1. Imports and Hardware Setup (Lines 33-48)

from machine import Pin, ADC
from neopixel import NeoPixel
from utime import sleep
from urandom import randint

These imports give us access to: - Pin & ADC: For controlling hardware pins and reading analog values from the potentiometer - NeoPixel: The library to control addressable LED strips - sleep: For timing delays between animation frames - randint: For generating random numbers to create flickering effects

pot = ADC(dual_ring_config.POT_PIN)

This creates an ADC (Analog-to-Digital Converter) object to read the potentiometer value. The potentiometer lets users select different fire patterns by turning a knob.

strip0 = NeoPixel(Pin(dual_ring_config.NEOPIXEL_PIN0), NUMBER_PIXELS0)  # 24 pixels
strip1 = NeoPixel(Pin(dual_ring_config.NEOPIXEL_PIN1), NUMBER_PIXELS1)  # 12 pixels

Two separate LED rings are initialized: - strip0: The outer ring with 24 LEDs - strip1: The inner ring with 12 LEDs

2. The Color Wheel Function (Lines 50-61)

def wheel(pos):
    if pos < 0 or pos > 255:
        return (0, 0, 0)
    if pos < 85:
        return (255 - pos * 3, pos * 3, 0)
    if pos < 170:
        pos -= 85
        return (0, 255 - pos * 3, pos * 3)
    pos -= 170
    return (pos * 3, 0, 255 - pos * 3)

The wheel() function converts a position (0-255) into an RGB color: - 0-84: Transitions from red to green (red decreases, green increases) - 85-169: Transitions from green to blue (green decreases, blue increases) - 170-255: Transitions from blue to red (blue decreases, red increases)

This creates a smooth color wheel effect useful for rainbow and color-cycling patterns.

3. Standard Fire Effect (Lines 63-74)

def standard_fire(delay):
    for i in range(0, NUMBER_PIXELS0):
         green = 50 + randint(0,155)
         red = green + randint(25,50)
         strip0[randint(0,NUMBER_PIXELS0 - 1)] = (red, green, 0)
    strip0.write()

This function creates a realistic fire effect:

  1. For each LED in the outer ring (24 pixels):
  2. Generate a random green value between 50 and 205
  3. Set red to be 25-50 units higher than green (fires are redder than green)
  4. Pick a random LED position to update (creates flickering)

  5. Set that LED to the calculated red-green color (no blue)

  6. Write to outer ring: strip0.write() sends all color data to the LEDs

  7. Repeat for inner ring with the same logic for 12 pixels

  8. Sleep: Wait for the specified delay before the next frame

Key insight: By randomly selecting which pixels to update and using random intensity variations, this creates the chaotic, flickering appearance of real fire!

4. Simulate Fire Pattern Function (Lines 76-91)

def simulate_fire_pattern(pattern_number, delay):
    if (pattern_number == 0):
        standard_fire(delay)
    else:
        color_1 = (wheel(pattern_number * 16 + randint(0,16) % 255))
        color_2 = wheel((pattern_number * 16 + 128 + randint(0,16) % 256))

This function provides 8 different visual patterns based on the pattern number (0-7):

  • Pattern 0: Uses the standard orange/red fire effect
  • Patterns 1-7: Create color-themed effects:
  • color_1: Base color calculated from pattern number × 16
  • color_2: Complementary color (opposite side of color wheel, 128 positions away)
  • Random variations (0-16) add subtle flickering
        for i in range(NUMBER_PIXELS0):
            strip0[i] = (color_1)
        strip0.write()
        for i in range(NUMBER_PIXELS1):
            strip1[i] = (color_2)
        strip1.write()

All LEDs in the outer ring get color_1, while all LEDs in the inner ring get color_2, creating a two-tone effect.

5. Clear Function (Lines 94-100)

def clear():
    for i in range(NUMBER_PIXELS0):
        strip0[i] = (0, 0, 0)
    strip0.write()

Sets all LEDs in both rings to (0, 0, 0) which is black (off). This is called when the program stops.

6. Main Program Loop (Lines 103-112)

try:
    print("Fire effect running - Press Ctrl+C to stop")
    while True:
        pattern = pot.read_u16() >> 13
        print(pattern, end=" ")
        simulate_fire_pattern(pattern, 0.1)

The main loop:

  1. Read potentiometer: pot.read_u16() returns a 16-bit value (0-65535)
  2. Convert to pattern number: Shift right by 13 bits (>> 13) to get values 0-7
  3. 65536 ÷ 8192 = 8 possible values
  4. Print pattern number: Shows which pattern is active
  5. Call simulation: Updates LEDs with 0.1 second delay (10 frames per second)
except KeyboardInterrupt:
    print("\nStopping fire effect")
    clear()

When you press Ctrl+C: - Catch the interrupt gracefully - Turn off all LEDs - Exit the program cleanly

Key Computational Thinking Concepts

This project demonstrates several important programming concepts:

  1. Randomization: Using randint() to create unpredictable, natural-looking fire
  2. Color Theory: Understanding RGB color mixing and complementary colors
  3. Hardware Control: Reading analog sensors and controlling digital LEDs
  4. Modularity: Breaking code into reusable functions (standard_fire, simulate_fire_pattern, clear)
  5. User Input: Converting potentiometer readings into discrete pattern selections
  6. Error Handling: Using try/except to handle program interruption
  7. Bit Operations: Using bit shifts (>> 13) for efficient division
