Schemadraw is a python library that converts a high-level placement file of components directly into a detailed circuit drawing in SVG. The key benefit for using schemadraw is that the actual placement of components in a schematic does not have to be specified in the schemadraw file. Only relative positioning (left, right, up down) needs to be specified. This is an ideal match with LLMs since LLMs are good at understanding relative positioning, but they are not good at absolute placement of components, wires or labels in a circuit diagram.

We call schemadraw a Declarative

Simple LED Circuit Example

1
2
3
4
5
6
7
8
9
import schemdraw
import schemdraw.elements as elm

with schemdraw.Drawing():
    elm.Resistor().label('150Ω')
    elm.LED().down().label('Red LED')
    elm.Line().left()
    elm.Ground()
    elm.SourceV().up().label('5V')

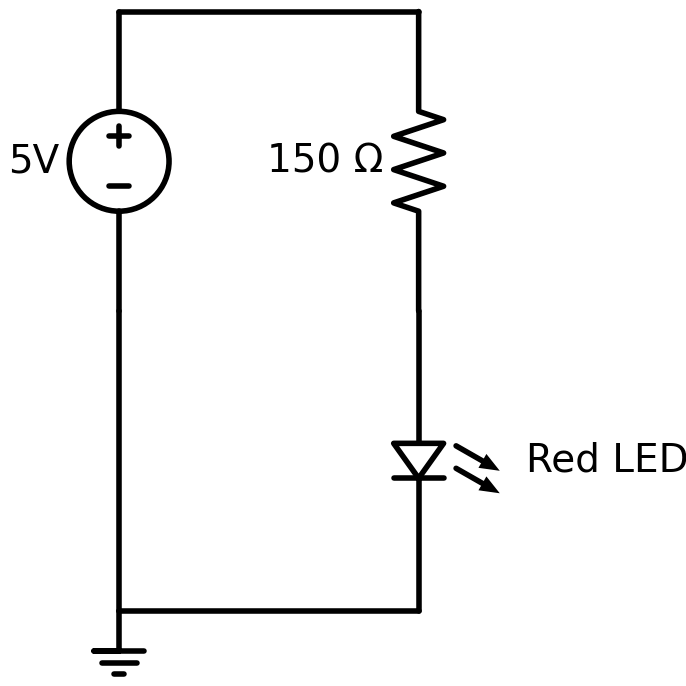

LED Circuit Right Side

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
import schemdraw
import schemdraw.elements as elm

with schemdraw.Drawing():
    elm.SourceV().up().label('5V')
    elm.Line().right()
    elm.Resistor().down().label('150 Ω')
    elm.LED().label('Red LED')
    elm.Line().left()
    elm.Ground()
    elm.Line().up()

Saving SVG and PNG

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
from schemdraw import Drawing
import schemdraw.elements as elm
import matplotlib.pyplot as plt

with Drawing(file='led-circuit-battery.svg') as d:
    # Vertical battery on the left with "+" on top
    vsrc = d.add(elm.Battery().up().reverse().label('+5V', loc='top'))

    # Top branch - just a wire at the top
    d += elm.Line().right()

    # Right side of the circuit vertical resistor to LED
    d += elm.Resistor().down().label('150 Ω')
    d += elm.LED().down().label('Red LED')

    # Horizontal line back toward the battery
    d += elm.Line().left().length(3)

    # Draw ground here
    gnd = d.add(elm.Ground())

    # Connect ground up to the negative battery terminal with a separate line
    # Draw a vertical line up from the ground to the negative terminal
    # Do not draw over the battery
    d += elm.Line().up().length(3)

    # Save PNG with white background
    fig = d.draw(show=False)
    plt.savefig('led-circuit-battery.png', dpi=300, bbox_inches='tight', facecolor='white')

Note the battery has the reverse() method for positive polarity on the top.

Setup Schemadraw

1
2
3
4
5
6
7
8
9
$ conda create -n schemadraw python=3
$ conda deactivate
(base) src/schemadraw $ conda activate schemadraw
(schemadraw) src/schemadraw $ pip install schemdraw[matplotlib]
Collecting schemdraw
  Downloading schemdraw-0.20-py3-none-any.whl.metadata (2.2 kB)
Downloading schemdraw-0.20-py3-none-any.whl (151 kB)
Installing collected packages: schemdraw
Successfully installed schemdraw-0.20

References

Schemadraw Documentation Website

Schemadraw Analog Circuits
