Simple LED Web Server - Code Walkthrough

Introduction

This tutorial explains how to create a web server on a Raspberry Pi Pico W that can control an LED through a web page. Think of it like creating your own mini-website that can control real hardware!

What You'll Learn

  • How to connect your Pico W to WiFi
  • How to create a simple web server
  • How to control hardware (LED) from a webpage
  • Basic Python programming concepts

Prerequisites

  • You need a secrets.py file with your WiFi credentials:
1
2
SSID = "YourWiFiName"
PASSWORD = "YourWiFiPassword"

Section 1: Importing Libraries

1
2
3
4
5
import network
import socket
import secrets
import time
from machine import Pin

What's happening here?

import statements tell Python to load special tools (called libraries) that we need:

  • network - Tools for connecting to WiFi
  • socket - Tools for creating web servers (like a mailbox for internet messages)
  • secrets - Your WiFi password file (keeps it separate and safe)
  • time - Tools for waiting and timing
  • Pin - From the machine library, this controls the physical pins on your Pico W

Think of imports like getting tools from a toolbox - you only take out what you need for the job.

Section 2: Setting Up the LED

1
2
3
# Setup the onboard LED
led = Pin("LED", Pin.OUT)
led_state = False  # Track LED state

What's happening here?

led = Pin("LED", Pin.OUT) - This creates a connection to the built-in LED on your Pico W - "LED" tells it which pin to use (the built-in one) - Pin.OUT means we want to control it (send signals OUT to it)

led_state = False - This creates a variable to remember if the LED is on or off - False means "off" - True would mean "on" - This is like a sticky note that says "remember: LED is currently off"

Section 3: Connecting to WiFi

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
def connect_wifi():
    """Connect to WiFi network using credentials from secrets.py"""
    print(f'Connecting to WiFi: {secrets.SSID}')

    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect(secrets.SSID, secrets.PASSWORD)

    # Wait for connection
    while not wlan.isconnected():
        print('.', end='')
        time.sleep(1)

    print(f'\nConnected! IP: {wlan.ifconfig()[0]}')
    return wlan

What's happening here?

def connect_wifi(): - This creates a function (a reusable block of code) called connect_wifi - Functions are like recipes - you write them once, then use them whenever needed

print(f'Connecting to WiFi: {secrets.SSID}') - Shows which network we're connecting to - f'...' is called an f-string - it lets you put variables inside text - secrets.SSID gets your network name from the secrets file

wlan = network.WLAN(network.STA_IF) - Creates a WiFi object - Think of this like turning on your phone's WiFi

wlan.active(True) - Turns on the WiFi radio wlan.connect(secrets.SSID, secrets.PASSWORD) - Attempts to connect using your credentials

The while loop:

1
2
3
while not wlan.isconnected():
    print('.', end='')
    time.sleep(1)
- while means "keep doing this as long as..." - not wlan.isconnected() means "as long as we're NOT connected" - print('.', end='') prints a dot without going to a new line - time.sleep(1) waits 1 second - This creates the "Connecting..." dots you see

return wlan - Gives back the WiFi object so other parts of the code can use it

Section 4: Controlling the LED

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
def toggle_led():
    """Toggle the LED on/off and return current state"""
    global led_state
    led_state = not led_state

    if led_state:
        led.on()
        print("LED turned ON")
    else:
        led.off()
        print("LED turned OFF")

    return "ON" if led_state else "OFF"

What's happening here?

global led_state - This tells Python we want to change the led_state variable we created earlier - Without global, Python would create a new, separate variable

led_state = not led_state - This flips the state - If led_state was False, not False becomes True - If led_state was True, not True becomes False - It's like a light switch - if it's off, turn it on; if it's on, turn it off

The if/else statement:

1
2
3
4
5
6
if led_state:
    led.on()
    print("LED turned ON")
else:
    led.off()
    print("LED turned OFF")
- if led_state: means "if led_state is True" - led.on() physically turns the LED on - else: means "otherwise" (if led_state is False) - led.off() physically turns the LED off

return "ON" if led_state else "OFF" - This is a shortcut way to return text - If led_state is True, return "ON" - If led_state is False, return "OFF"

Section 5: Creating the Web Page

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
def generate_html():
    """Create simple HTML page with LED toggle button"""
    html = f"""<!DOCTYPE html>
<html>
<head>
    <title>LED Control</title>
</head>
<body>
    <h1>Simple LED Control</h1>
    <p>LED Status: <strong>{toggle_led.__globals__['led_state'] and "ON" or "OFF"}</strong></p>
    <button onclick="toggleLED()">Toggle LED</button>

    <script>
        function toggleLED() {{
            fetch('/toggle', {{method: 'POST'}})
            .then(() => location.reload());
        }}
    </script>
</body>
</html>"""
    return html

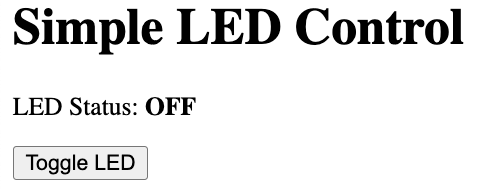

What's happening here?

html = f"""...""" - Creates a multi-line string containing HTML code - f"""...""" lets us put Python variables inside the HTML - HTML is the language used to create web pages

Key HTML parts: - <title>LED Control</title> - Sets the browser tab title - <h1>Simple LED Control</h1> - Creates a big heading - <p>LED Status: <strong>...</strong></p> - Shows the current LED status - <button onclick="toggleLED()">Toggle LED</button> - Creates a clickable button

The JavaScript part:

1
2
3
4
function toggleLED() {
    fetch('/toggle', {method: 'POST'})
    .then(() => location.reload());
}
- This runs when someone clicks the button - fetch('/toggle', {method: 'POST'}) sends a message to our server - .then(() => location.reload()) refreshes the page after the LED toggles

Section 6: The Web Server

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
def start_server(wlan):
    """Start web server and handle requests"""
    # Create socket and bind to port 80
    s = socket.socket()
    s.bind(('0.0.0.0', 80))
    s.listen(1)

    print(f'Web server running at: http://{wlan.ifconfig()[0]}')

    while True:
        # Accept incoming connection
        client, addr = s.accept()
        print(f'Client connected: {addr}')

        # Read the request
        request = client.recv(1024).decode('utf-8')

        if 'GET / ' in request:
            # Serve main page
            html = generate_html()
            client.send('HTTP/1.1 200 OK\r\n\r\n')
            client.send(html)

        elif 'POST /toggle' in request:
            # Toggle LED and send response
            state = toggle_led()
            client.send('HTTP/1.1 200 OK\r\n\r\n')
            client.send(f'LED is {state}')

        client.close()

What's happening here?

Setting up the server:

1
2
3
s = socket.socket()
s.bind(('0.0.0.0', 80))
s.listen(1)
- socket.socket() creates a "mailbox" for internet messages - s.bind(('0.0.0.0', 80)) says "listen on all network connections, port 80" - Port 80 is the standard port for websites - s.listen(1) says "allow 1 person to connect at a time"

The main server loop:

1
2
while True:
    # This runs forever, handling one visitor at a time

Handling visitors:

1
2
3
client, addr = s.accept()
print(f'Client connected: {addr}')
request = client.recv(1024).decode('utf-8')
- s.accept() waits for someone to visit our website - client.recv(1024) reads their request (what page they want) - .decode('utf-8') converts the message to readable text

Understanding the request:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
if 'GET / ' in request:
    # Someone wants to see the main page
    html = generate_html()
    client.send('HTTP/1.1 200 OK\r\n\r\n')
    client.send(html)

elif 'POST /toggle' in request:
    # Someone clicked the toggle button
    state = toggle_led()
    client.send('HTTP/1.1 200 OK\r\n\r\n')
    client.send(f'LED is {state}')

  • GET / means "show me the main page"
  • POST /toggle means "toggle the LED"
  • HTTP/1.1 200 OK is like saying "Everything's fine, here's what you asked for"

client.close() - Ends the conversation with that visitor

Section 7: The Main Program

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
def main():
    """Main program - connect to WiFi and start server"""
    print('Simple LED Web Server')
    print('====================')

    # Turn off LED initially
    led.off()

    # Connect to WiFi
    wlan = connect_wifi()

    # Start web server
    start_server(wlan)

# Run the program
if __name__ == '__main__':
    main()

What's happening here?

def main(): - Creates the main function that runs our program

led.off() - Makes sure the LED starts in the "off" position

wlan = connect_wifi() - Calls our WiFi function and saves the result

start_server(wlan) - Starts the web server (this runs forever)

if __name__ == '__main__': - This is Python's way of saying "if this file is being run directly (not imported), then run the main() function"

How Everything Works Together

  1. Startup: Program turns off LED and connects to WiFi
  2. Server starts: Creates a "mailbox" at your Pico's IP address
  3. Waiting: Server waits for someone to visit the website
  4. Visitor arrives: Someone types the IP address in their browser
  5. Send webpage: Server sends the HTML page with the button
  6. Button clicked: Visitor clicks "Toggle LED"
  7. Message sent: Browser sends a "toggle" message to the server
  8. LED changes: Server runs the toggle function, changing the LED
  9. Response sent: Server tells the browser "LED is now ON/OFF"
  10. Page refreshes: Browser reloads to show the new status
  11. Repeat: Back to step 5, ready for the next click

Key Programming Concepts You Learned

Variables: Storing information (like led_state)

Functions: Reusable blocks of code (like toggle_led())

Loops: Repeating actions (while loops)

Conditionals: Making decisions (if/else statements)

Libraries: Using pre-written code (import statements)

Global variables: Sharing data between functions

Return values: Functions giving back results

String formatting: Putting variables in text (f"...")

Real-World Applications

This same pattern is used in:

  • Smart home devices (controlling lights, thermostats)
  • IoT (Internet of Things) sensors
  • Industrial control systems
  • Home automation projects
  • Remote monitoring systems

You've just built the foundation for controlling any device over the internet!

Full Source Code

Here is the full source code. It is about 70 lines.

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
import network
import socket
import secrets
import time
from machine import Pin

# Setup the onboard LED
led = Pin("LED", Pin.OUT)
led_state = False  # Track LED state

def connect_wifi():
    """Connect to WiFi network using credentials from secrets.py"""
    print(f'Connecting to WiFi: {secrets.SSID}')

    wlan = network.WLAN(network.STA_IF)
    wlan.active(True)
    wlan.connect(secrets.SSID, secrets.PASSWORD)

    # Wait for connection
    while not wlan.isconnected():
        print('.', end='')
        time.sleep(1)

    print(f'\nConnected! IP: {wlan.ifconfig()[0]}')
    return wlan

def toggle_led():
    """Toggle the LED on/off and return current state"""
    global led_state
    led_state = not led_state

    if led_state:
        led.on()
        print("LED turned ON")
    else:
        led.off()
        print("LED turned OFF")

    return "ON" if led_state else "OFF"

def generate_html():
    """Create simple HTML page with LED toggle button"""
    html = f"""<!DOCTYPE html>
<html>
<head>
    <title>LED Control</title>
</head>
<body>
    <h1>Simple LED Control</h1>
    <p>LED Status: <strong>{toggle_led.__globals__['led_state'] and "ON" or "OFF"}</strong></p>
    <button onclick="toggleLED()">Toggle LED</button>

    <script>
        function toggleLED() {{
            fetch('/toggle', {{method: 'POST'}})
            .then(() => location.reload());
        }}
    </script>
</body>
</html>"""
    return html

def start_server(wlan):
    """Start web server and handle requests"""
    # Create socket and bind to port 80
    s = socket.socket()
    s.bind(('0.0.0.0', 80))
    s.listen(1)

    print(f'Web server running at: http://{wlan.ifconfig()[0]}')

    while True:
        # Accept incoming connection
        client, addr = s.accept()
        print(f'Client connected: {addr}')

        # Read the request
        request = client.recv(1024).decode('utf-8')

        if 'GET / ' in request:
            # Serve main page
            html = generate_html()
            client.send('HTTP/1.1 200 OK\r\n\r\n')
            client.send(html)

        elif 'POST /toggle' in request:
            # Toggle LED and send response
            state = toggle_led()
            client.send('HTTP/1.1 200 OK\r\n\r\n')
            client.send(f'LED is {state}')

        client.close()

def main():
    """Main program - connect to WiFi and start server"""
    print('Simple LED Web Server')
    print('====================')

    # Turn off LED initially
    led.off()

    # Connect to WiFi
    wlan = connect_wifi()

    # Start web server
    start_server(wlan)

# Run the program
if __name__ == '__main__':
    main()
