LED Noodle Nightlight

The LED Noodle Nightlight is a simple, low-cost nightlight that turns itself on when the room gets dark. It uses a bendable LED noodle (a flexible strip of tiny LEDs that looks like a glowing string) instead of a NeoPixel strip.

Pixel says...

This is one of my favorite first circuits! There's no code at all. The parts do all the thinking. When the room gets dark, the light turns on by itself. Like magic — but it's really just electronics!

What you'll learn

  • How a photoresistor senses darkness
  • How a transistor works as an automatic switch
  • How to tune a circuit with a resistor or potentiometer

What you'll need

  • An LED noodle (flexible LED filament)
  • A photoresistor
  • A transistor (such as a 2N2222)
  • Resistors for sensitivity and brightness
  • A 5V power source

The Circuit

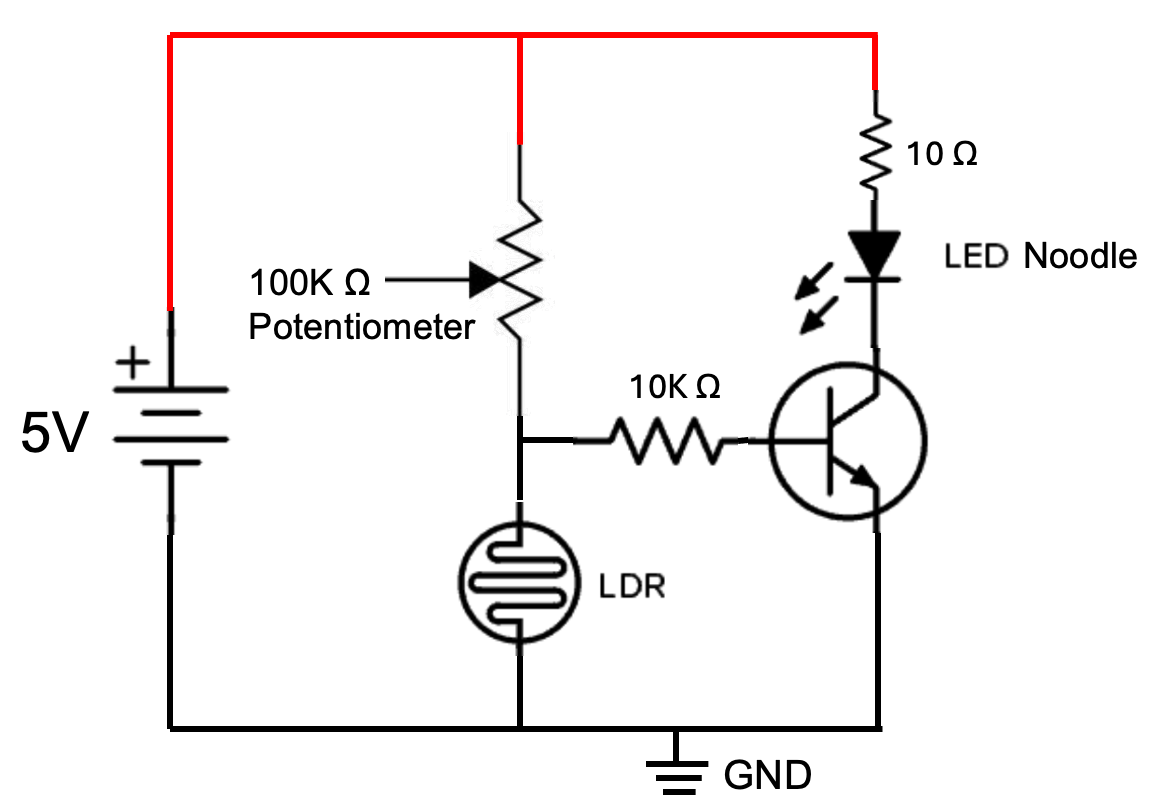

LED Noodle Nightlight circuit diagram

The circuit has three parts that work together:

  1. The sensor (left side). A photoresistor and a "pull-up" resistor form a voltage divider. In the light, the photoresistor has low resistance, so the middle of the divider sits near ground. In the dark, the photoresistor's resistance climbs and the middle voltage rises toward 5 volts.

  2. The switch (middle). That rising voltage feeds the base of a transistor (an electronic switch). When the room is dark, the base voltage is high, the transistor turns on, and current can flow.

  3. The light (right side). When the transistor is on, current flows from the 5-volt rail, through the LED noodle and a brightness resistor, through the transistor, and down to ground. The noodle glows. When the room is bright, the transistor is off and the noodle stays dark.

Tuning Your Nightlight

You can adjust two things about your nightlight:

  • Sensitivity is how dark the room must get before the light turns on. The value of the "pull-up" resistor sets this. A 100K resistor means the room must be almost fully dark. A smaller value, like 50K, turns the light on at dusk. Swap a 100K potentiometer in here to make the sensitivity adjustable.

  • Brightness is how strongly the noodle glows. The brightness resistor in series with the noodle sets this. A smaller resistor makes the noodle brighter; a larger one makes it dimmer and saves power.

Pixel's tip

Too bright at night hurts sleepy eyes. Too dim and you can't find your way. Try a few resistor values until the glow feels just right.

How It Compares

This noodle nightlight is an analog circuit — it works with no code. If you want patterns, colors, and a brightness knob, try the digital versions that use the Pico:

Try It Yourself

  • Replace the sensitivity resistor with a potentiometer and find the setting where the light comes on right at sunset.
  • Measure the photoresistor's value in a dark room and a bright room.
  • Bend the noodle into a fun shape — a star, a heart, or your initial.
