About This MicroSim

This MicroSim shows how to fit a straight line to a set of data points. Four green data points sit on a grid. A blue line runs across the grid, and you control it with two sliders: one for the slope and one for the intercept.

For each data point, a purple predicted point on the line shows the y value that the line predicts for that x value. The vertical distance between a green point and its purple point is the error of that prediction:

predicted y = slope × x + intercept
error       = actual y - predicted y

A colored square is drawn between each green point and its purple point. The side of the square is the size of the error, so the area of the square is the error squared. A point that is twice as far from the line gets a square with four times the area. Squaring does two jobs: it makes every error count as a positive amount, and it makes a large miss count for much more than a small one.

The least squares line is the line that makes the total area of the squares as small as possible. You find it here by moving the sliders until the squares shrink as far as they will go.

The Plot

The plot runs from 0 to 500 on both axes, with (0, 0) in the lower left corner. Grid lines are 50 units apart, and every other grid line is heavier to mark each 100 units. The line crosses the left edge of the plot at the intercept.

Data point	x	y	Square color when the point is above the line	Square color when the point is below the line
1	100	220	red	orange
2	200	180	yellow	pink
3	300	300	cyan	blue
4	400	290	light green	olive

Each square changes color when the line crosses its data point, so the colors tell you at a glance which points are above the line and which are below it.

The Best Fit

With the starting line (slope 0.50, intercept 0), all four data points are above the line and the squares are large. The errors are 170, 80, 150 and 90, so the sum of the squared errors is 28,900 + 6,400 + 22,500 + 8,100 = 65,900.

The least squares line for these four points is:

1	`y = 0.33 × x + 165`

With this line the errors are 22, -51, 36 and -7, and the sum of the squared errors drops to 484 + 2,601 + 1,296 + 49 = 4,430. Two points are above the line and two are below it. No other slope and intercept give a smaller total.

How to Use

Look at the starting line. All four green points are above it, so you see a red, a yellow, a cyan and a light green square.
Move the Intercept slider to the right. The whole line moves up without tilting, and the squares start to shrink.
Move the Slope slider. The line tilts around the point where it meets the left edge of the plot.
Work back and forth between the two sliders until the squares are as small as you can make them. Write down your slope and intercept.
Compare your values with the least squares line: a slope of 0.33 and an intercept of 165.
For small steps, click a slider and press the left and right arrow keys. Each press changes the slope by 0.01 or the intercept by 1.

Real-World Example: Home Prices

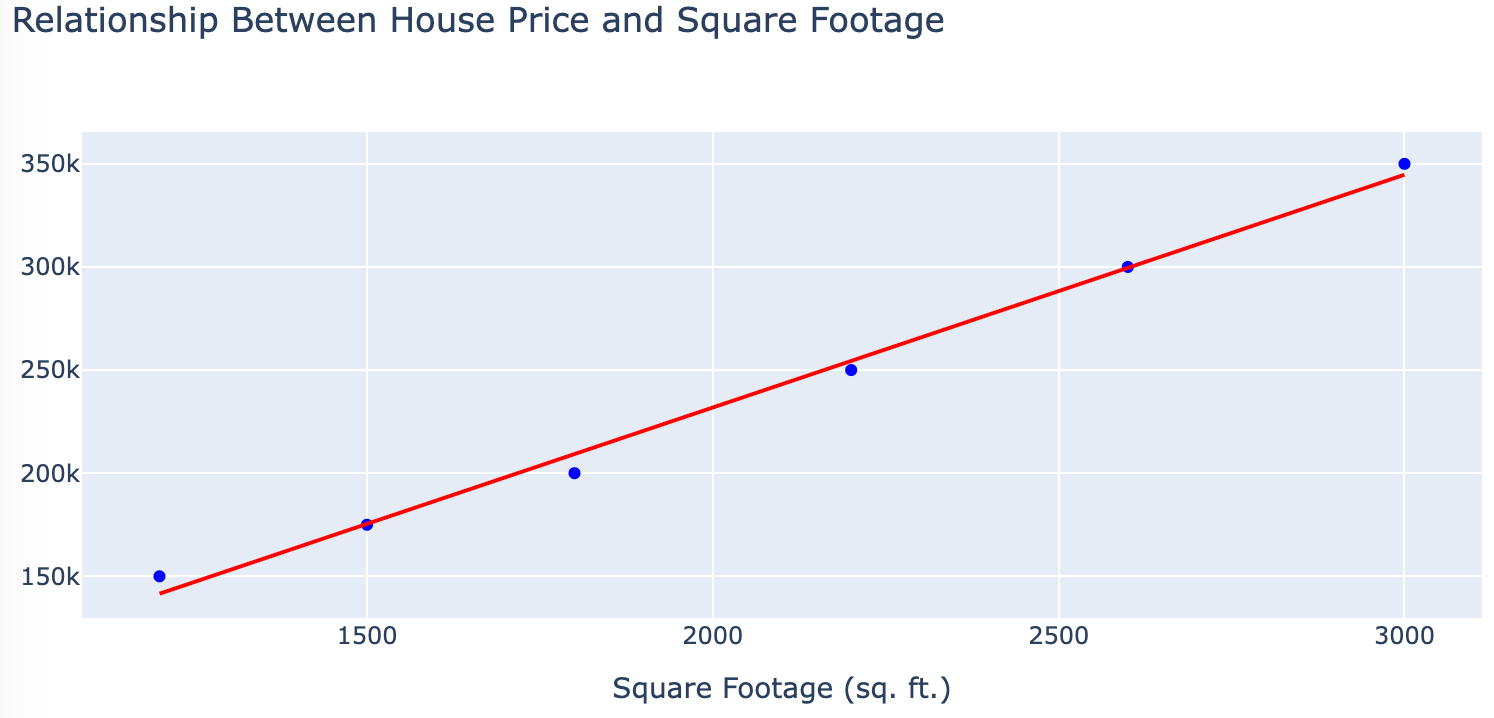

A common use of a least squares line is to predict the price of a home from its size. This chart shows the sale price and the square footage of six homes, with a red line fitted to the points:

Chart of house price versus square footage with six blue points and a red fit line

The next image is a conversation with ChatGPT that asks for a scatter plot of 20 sample home sales. The dashed green line from each point to the red regression line is the error for that home. These are the same errors that the MicroSim draws as squares.

A ChatGPT prompt and the resulting scatter plot of 20 home sales with a red regression line and dashed green error lines

Lesson Plan for High School Algebra

Lesson Title: Linear Functions: Understanding Slope and Intercept

Duration: 50 minutes

Grade Level: 9-10

Subject: Algebra 1

Learning Objectives

By the end of this lesson, students will be able to:

Define slope as a rate of change
Explain the meaning of y-intercept in a linear function
Identify how changes in slope and intercept affect the graph of a line
Use an interactive visualization to explore linear functions
Solve real-world problems involving slope and intercept

Materials Needed

Interactive Slope-Intercept Visualization (p5.js application)
Student devices (computers, tablets, or smartphones)
Guided worksheet (printed or digital)
Whiteboard/projector

Prerequisite Knowledge

Basic understanding of coordinate plane
Ability to plot points on a graph
Familiarity with the equation y = mx + b

Lesson Outline

1. Introduction (5 minutes)

Begin with a real-world scenario: "If you earn $15 per hour at your job, how would you calculate your total earnings?"
Discuss how the relationship between hours worked and money earned forms a linear relationship
Introduce the lesson focus: understanding how slope and intercept affect linear functions

2. Review of Key Concepts (10 minutes)

Review the slope-intercept form of a line: y = mx + b
Define slope (m) as the rate of change (rise/run)
Define y-intercept (b) as the point where the line crosses the y-axis (0,b)
Demonstrate examples on the board with different values for m and b

3. Interactive Exploration (15 minutes)

Introduce the Slope-Intercept Visualization tool
Demonstrate how to use the sliders to change slope and intercept values
Explain the visual elements:
- Green points represent actual data points
- Purple points show where the line would predict those values
- Colored squares show the "error" or difference between actual and predicted points
Guided exploration:
1. What happens when the slope increases? Decreases? Becomes negative?
2. What happens when the y-intercept changes?
3. Can you find values that minimize the differences between actual and predicted points?

4. Pair Work (10 minutes)

Students work in pairs using the visualization tool
Challenge: Find the linear function that best fits the green data points
Each pair should record their "best fit" values for slope and intercept
Discuss strategy: How can you tell when you've found a good fit?

5. Connection to Real-World Applications (5 minutes)

Discuss how the slope-intercept model applies to:

Economics: price vs. quantity relationships
Physics: distance vs. time in constant velocity
Business: fixed costs (y-intercept) and variable costs (slope)

Show how the colored squares relate to "error" in predictions

6. Closure and Assessment (5 minutes)

Quick check for understanding:
- "If a line has a slope of 2 and a y-intercept of -3, what is its equation?"
- "If a line has a negative slope, what does that tell us about the relationship?"
Exit ticket: Students write one insight they gained from using the visualization

Extension Activities

Challenge students to create their own set of points and find the best-fitting line
Introduce the concept of "least squares regression" as a mathematical way to find the best fit
Connect to data science concepts: predictions, error measurements, and model accuracy

Differentiation

Support: Provide a step-by-step guide for using the visualization tool
Extension: Ask advanced students to modify the code to add new features or data points

Assessment

Formative: Observation during interactive exploration and pair work
Summative: Exit ticket responses and follow-up homework assignment

Homework

Complete practice problems involving writing equations in slope-intercept form
Find a real-world example where a linear relationship exists and identify what the slope and intercept represent in that context

Follow-Up Lesson Ideas

Comparing linear vs. non-linear relationships
Introduction to systems of linear equations
Linear regression with larger datasets
