Tilt-a-Rainbow Mini Kit

These pictures were drawn by a computer simulator, so the lights on your real kit may look a little different.

Pixel says...

Welcome, light-maker! This kit has 64 lights and a sensor that feels which way is down. You'll draw faces, scroll your name, and roll lights by tilting. Let's light this up!

This kit is the little sibling of the Tilt-a-Rainbow Kit. It uses the same Pico, the same sensor, and the same buttons, with a smaller matrix. A small matrix is perfect for drawing, so this kit adds five drawing labs.

What you'll learn

After this guide you will be able to:

1. Wire a light matrix, a tilt sensor, and two buttons to a Raspberry Pi Pico.
2. Test each part by itself before you put them together.
3. Turn a row and a column into a pixel number.
4. Draw pictures, animations, and scrolling words.
5. Read the tilt sensor and use it to move lights.
6. Run twelve different light shows from one program.

What you'll need

• The kit parts in the table below
• A computer with Thonny installed
• A USB data cable (see the warning below)
• About 90 minutes for the first few labs

Kit Contents

Check each part off before you start.

Part	Approximate Cost	What it does
Raspberry Pi Pico	$4.00	The small computer that runs your code
8x8 NeoPixel matrix	$4.00	64 lights in 8 rows and 8 columns. Each light is a pixel
LIS3DH accelerometer	$5.00	A sensor that feels tilt and movement
Push buttons (QTY=2)	$0.50	Buttons you press to change pictures and modes
Breadboard and jumper wires	$3.50	Connect the parts with no soldering. Your kit may use a different kind of wire
Micro USB cable	$2.50	Carries your code and the power
Total cost	$19.50

These are single-kit estimates from October 2026. Prices change, and buying parts in packs costs less.

Check your USB cable

Make sure your cable is a data cable, not a charge-only cable. A charge-only cable powers the Pico, but your computer cannot see it. That looks exactly like a broken Pico.

What Is an Accelerometer?

An accelerometer is a sensor that measures how fast something speeds up or slows down. It also feels the pull of gravity, which is always pulling toward the ground.

Think of a tiny ball inside a box. Tip the box, and the ball rolls toward the low side. The accelerometer works like that ball. It tells your code which way is down.

The sensor reports its answer in a unit called g. One g is the pull of Earth's gravity. When the kit lies flat, the sensor reads about 1 g straight down. When the kit stands on its edge, the same 1 g shows up along a different direction. Your code reads those numbers and moves the lights.

How the Parts Connect

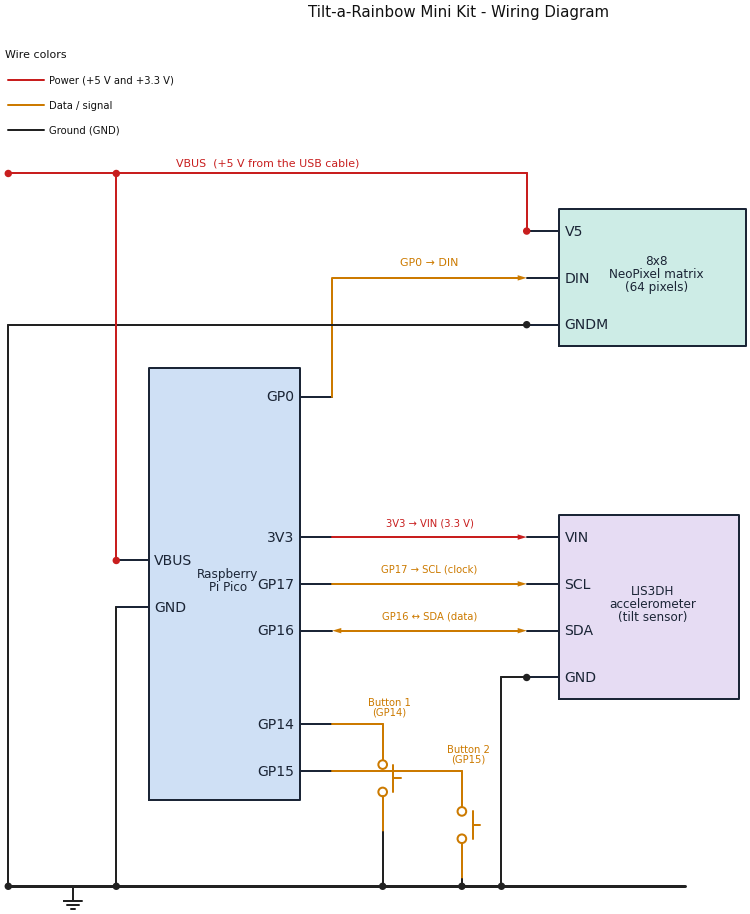

Follow the colors: red wires carry power, amber wires carry data and button signals, and black wires are ground. A dot means two wires are joined. Wires that cross with no dot are not joined.

Do these steps in order. Never wire a Pico that has the USB cable plugged in.

Step 1: Place the Pico

1. Unplug the USB cable from the Pico.
2. Push the Pico into the breadboard with the USB connector at the top.
3. Check that the pins on both sides sit in different breadboard rows, so no two pins touch.

With the USB connector at the top, the pin in the top-left corner is pin 1, called GP0. Each pin has a number and a name. The names that start with GP are general purpose pins (pins your code can control). The numbers count down the left side, then up the right side.

Step 2: Wire the 8x8 matrix

The matrix has three wires. Connect them in this order: ground first, then power, then data.

1. Connect the matrix GND (ground) wire to any GND pin on the Pico. Pin 38 works well.
2. Connect the matrix 5V (power) wire to VBUS, which is pin 40. This is the 5 volts that comes from the USB cable. Some panels print +5V or VCC.
3. Connect the matrix DIN (data in) wire to GP0, which is pin 1.

Matrix wire	Goes to	Pico pin
GND (ground)	Any GND pin	Pin 38 works well
5V (power)	VBUS	Pin 40
DIN (data in)	GP0	Pin 1

Watch out!

A matrix has an input end and an output end. Look for the letters DIN (data in) and DOUT (data out), or for small arrows. Wire the Pico to DIN. A matrix wired to DOUT stays dark, and the wiring looks perfect the whole time.

Step 3: Wire the LIS3DH accelerometer

This photo shows the same sensor and buttons on the bigger Tilt-a-Rainbow Kit. Your wiring is the same.

The accelerometer talks to the Pico over two wires. This way of talking is called I2C (say "eye-squared-see"). One wire is SDA, the data wire. The other is SCL, the clock wire that keeps both sides in step.

1. Connect the accelerometer VIN (power in) pin to 3V3 (OUT), which is pin 36. Some boards print VCC instead of VIN. They mean the same thing.
2. Connect the accelerometer GND pin to any GND pin. Pin 23 is right next to the other wires.
3. Connect the accelerometer SCL pin to GP17, which is pin 22. Some boards print SCK instead of SCL.
4. Connect the accelerometer SDA pin to GP16, which is pin 21.

Accelerometer pin	Pico pin	Pico name	What it does
VIN (or VCC)	Pin 36	3V3 (OUT)	Power in, 3.3 volts
GND	Pin 23	GND	Ground
SCL (or SCK)	Pin 22	GP17	Clock
SDA	Pin 21	GP16	Data

Use 3.3 volts for the sensor

Connect the accelerometer to 3V3 (OUT), never to VBUS. Many sensor boards can be damaged by 5 volts. Only the matrix uses the 5 volt VBUS pin.

Step 4: Wire the two buttons

Push each button into the breadboard so its legs straddle the center channel, the groove down the middle. Each button needs two wires.

1. Connect one side of Button 1 to GP14, which is pin 19.
2. Connect the other side of Button 1 to the ground rail.
3. Connect one side of Button 2 to GP15, which is pin 20.
4. Connect the other side of Button 2 to the ground rail.

Button	One side goes to	The other side goes to
Button 1	GP14 (pin 19)	The ground rail
Button 2	GP15 (pin 20)	The ground rail

You do not need resistors. The Pico has internal pull-up resistors. These tiny resistors inside the chip hold a pin at 3.3 volts until something pulls it down. So a pin reads 1 when the button is up and 0 when you press it. Pressed means zero!

These buttons have four legs, in two joined pairs. Wire across the button, from one corner to the opposite corner, and you will always be on the right pair.

The Pin Map

Every program in this kit reads its pin numbers from one file called config.py.

config.py

# Moving Rainbow Configuration file
# Filename: config.py
# Version: 1.0.0
#
# This file contains the hardware configuration for the Tilt-a-Rainbow
# Mini kit. It is imported by each program.

# 8x8 NeoPixel matrix (64 pixels)
NEOPIXEL_PIN = 0
MATRIX_WIDTH = 8
MATRIX_HEIGHT = 8
NUMBER_PIXELS = MATRIX_WIDTH * MATRIX_HEIGHT
# Some 8x8 panels are wired in a zig-zag: row 0 runs left to right,
# row 1 runs right to left, and so on. This panel is NOT: every row runs
# left to right. (Checked on the real panel: pixel 8 sits right below
# pixel 0.) Run 06-walk-pixels.py to see the pixel order.
SERPENTINE = False

# The color number the programs use when ALL 64 pixels are lit at once.
# 64 pixels at (20, 20, 20) draw about 300 mA, safely under the 500 mA a
# USB port supplies. Programs that light only a few pixels can use bigger
# numbers.
LEVEL = 20

# Two mode buttons, each wired from its GPIO pin to GND
BUTTON_PIN_1 = 14
BUTTON_PIN_2 = 15

# Accelerometer on I2C bus 0 (GP16 is SDA, GP17 is SCL)
# LIS3DH accelerometer. 0x19 is the usual address (0x18 if SDO is tied to GND).
# Run 02-probe.py to check.
ACCEL_I2C_ID = 0
ACCEL_SDA_PIN = 16
ACCEL_SCL_PIN = 17
ACCEL_ADDRESS = 0x19

Because every program starts with import config, you never have to remember pin numbers. You write config.NEOPIXEL_PIN and the right number fills in. If your wiring is different, change the number in this one file and every program follows along.

Get the Code onto the Pico

Uploading means copying files from your computer onto the Pico. The Pico keeps them even after you unplug it.

The quickest way uses a helper program named mpremote. A grown-up helper can run this command from the kit's folder:

# copy every program in this folder onto the Pico
./upload-code.sh

It should say Uploading 37 file(s) to Pico... and end with a list of files.

You can also copy files one at a time with Thonny. Open a file, choose File > Save as, pick Raspberry Pi Pico, and keep the same file name. You do not need all 37 files for the first labs:

Labs	Files the Pico needs
Lab 1	Only the lab file itself
Labs 2 to 9, 11, 13 and 14	config.py, plus the lab file
Lab 10	config.py, pictures.py, plus the lab file
Lab 12	config.py, font.py, plus the lab file
Labs 15 and 16	config.py, font.py, kit.py, the lab file, and its module (sloshing_water.py or tilt_a_maze.py)
Lab 17	config.py, font.py, kit.py, tilt_a_sketch.py, plus the lab file
Labs 18 and 19	Everything: all 37 files

Your Labs

Do the labs in order. Each one tests one idea, and the first few test your wiring. If something breaks later, you already know which parts work.

Lab	Program	What you do
Lab 1: Blink the Onboard LED	01-blink-onboard-led.py	Check that Python runs on your Pico
Lab 2: Hardware Probe	02-probe.py	Test your wiring, your buttons, and the sensor
Lab 3: Button Test	03-button-test.py	See your two buttons work
Lab 4: First Pixel	04-first-pixel.py	Light one pixel red, green, and blue
Lab 5: Fill Colors	05-fill-colors.py	Light all 64 pixels safely
Lab 6: Walk the Pixels	06-walk-pixels.py	Watch one pixel visit all 64 spots
Lab 7: X-Y Corners	07-xy-corners.py	Turn a column and a row into a pixel number
Lab 8: Row and Column Sweep	08-row-column-sweep.py	Sweep lines of light across the matrix
Lab 9: Smiley Face	09-smiley-face.py	Draw a picture from 8 lines of letters

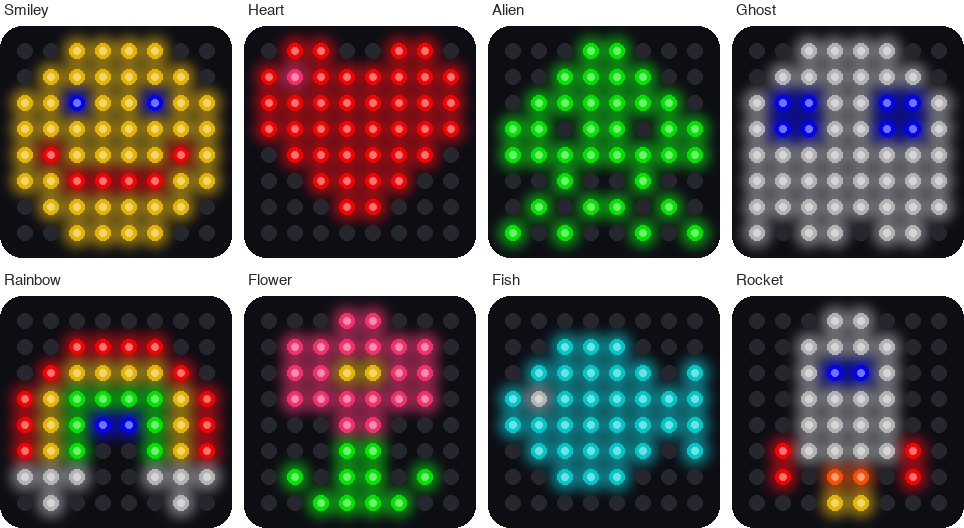

Lab 10: Picture Show	10-picture-show.py	Flip through eight pictures with your buttons
Lab 11: Winking Face	11-winking-face.py	Make a picture move with frames
Lab 12: Scrolling Message	12-scrolling-message.py	Slide your own words across the matrix
Lab 13: Accelerometer Print	13-accel-print.py	Read the tilt sensor
Lab 14: Accelerometer Bubble	14-accel-bubble.py	Slide a dot by tilting the kit
Lab 15: Sloshing Water	15-sloshing-water.py	Make a pan of water that sloshes
Lab 16: Tilt-a-Maze	16-tilt-a-maze.py	Roll a ball through nine mazes
Lab 17: Tilt-a-Sketch	17-tilt-a-sketch.py	Draw your own picture by tilting

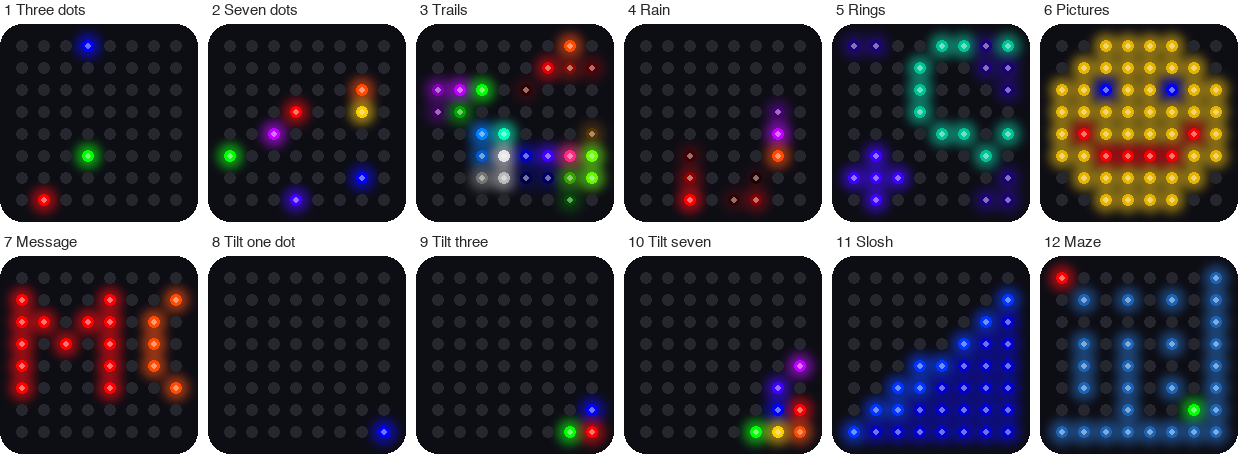

Lab 18: Modes	18-modes.py	Switch between twelve light shows with your buttons
Lab 19: Demo Mode	19-template-main.py	Run all 18 shows and games, and make the kit start by itself

Showing your kit at a club night or a science fair? Print the one-page Demo Mode Guide and set it next to the kit.

Power Safety

A USB port can supply about 500 milliamps (mA). One pixel at full white uses about 60 mA. All 64 pixels at full white would need about 3,800 mA, which is 3.8 amps. That is far too much for USB.

So the programs in this kit keep the color numbers small. LEVEL = 20 in config.py is the color number the programs use when all 64 pixels light at once. Labs that light only a few pixels can use bigger numbers. Lab 5 shows you the math.

To run the kit away from a computer, use a USB wall charger, like a phone charger. Many power banks turn themselves off when a device draws only a little current, and this kit often does. With only a few dim pixels lit, the power bank decides nothing is plugged in and switches off after a short time. Lab 19 shows how to make the kit start by itself.

Troubleshooting

What you see	What to try
Thonny cannot find the Pico	Try a different USB cable. Use a data cable, not a charge-only cable
ImportError: no module named 'config'	Save config.py onto the Pico (see Get the Code onto the Pico)
ImportError naming pictures, font or kit	Save that file onto the Pico too. The table above lists what each lab needs
The matrix stays dark	Check that the data wire goes to DIN, not DOUT. Check the 5 volt and ground wires
Colors come out in the wrong order	Run Lab 4. See the note there about color order
A picture looks scrambled in every other row	Run Lab 6. Your panel may be a zig-zag panel, so change SERPENTINE in config.py
Lab 2 says No I2C devices found	Check VIN, GND, SCL, and SDA. Check that SDA and SCL are not swapped
A button does nothing	Run Lab 3. Check both legs are on the correct side of the center channel
A dot rolls the wrong way when you tilt	Change FLIP_X, FLIP_Y, or SWAP_XY in kit.py (or in Lab 14)
The Pico restarts when many pixels light	The lights are drawing too much power. Lower LEVEL in config.py

Words to Know

Word	What it means
Pixel	One light on the matrix
Matrix	A grid of lights in rows and columns
Accelerometer	A sensor that feels tilt and movement
g	One g is the pull of Earth's gravity
I2C	A two-wire way for parts to talk to the Pico
GPIO	A pin your code can read or control (short for general purpose input/output)
Color key	A list of letters and the color each one stands for
Frame	One picture in an animation
Font	A set of tiny pictures, one for each letter
Module	A Python file that other programs can load and use
Config file	One file that holds every pin number and setting

Check your understanding

1. Which pin does the matrix's data wire connect to? Which pins connect the accelerometer?
2. Why does the accelerometer connect to 3V3 (OUT) and not to VBUS?
3. A button reads 1 when you do nothing. What does it read when you press it?
4. Why does one file called config.py help when your wiring is different?

Kit complete!

You have wired a whole kit: lights, a sensor, and buttons. Now let's teach them tricks!

What's next: Start with Lab 1: Blink the Onboard LED.

Source Code

The whole kit lives in one folder, src/kits/8x8-matrix-accel/. The wiring diagram is drawn by circuit-diagram.py in that folder.
