Lab 10: Accelerometer Bubble

Pixel says...

Time to put the sensor in charge of the lights! Tip your kit and watch a glowing dot slide toward the low side. Let's light this up!

Program file: 10-accel-bubble.py

What you'll learn

• How to turn a tilt number into a pixel position
• How a small function does the math for both x and y
• How FLIP_X, FLIP_Y, and SWAP_XY fix the direction
• How nested loops draw a 2×2 dot

What you'll need

• Your whole kit: the matrix and the accelerometer, wired as shown in the Kit Guide
• config.py saved on the Pico
• Thonny open and connected to your Pico
• The xy function from Lab 7 and the readings from Lab 9

The program

This program draws a small blue-green dot. The dot slides toward whichever side of the kit is lowest.

10-accel-bubble.py

# Test 10: Accelerometer Bubble
# Filename: 10-accel-bubble.py
# Version: 1.0.0
#
# A 2x2 dot on the matrix acts like a bubble in a level: tilt the kit
# and the dot slides toward the low side. If it slides the wrong way,
# change FLIP_X or FLIP_Y. If left-right and up-down are swapped,
# change SWAP_XY.
# Not yet tested on hardware.

from machine import Pin, I2C
from neopixel import NeoPixel
from utime import sleep
import ustruct
import config

print("Test 10: Accelerometer Bubble (version 1.0.0)")

# hardware settings from config.py
NEOPIXEL_PIN = config.NEOPIXEL_PIN
NUMBER_PIXELS = config.NUMBER_PIXELS
MATRIX_WIDTH = config.MATRIX_WIDTH
MATRIX_HEIGHT = config.MATRIX_HEIGHT
SERPENTINE = config.SERPENTINE
ACCEL_I2C_ID = config.ACCEL_I2C_ID
ACCEL_SDA_PIN = config.ACCEL_SDA_PIN
ACCEL_SCL_PIN = config.ACCEL_SCL_PIN
ACCEL_ADDRESS = config.ACCEL_ADDRESS

# LIS3DH registers
CTRL_REG1 = 0x20
CTRL_REG4 = 0x23
ACCEL_DATA_REGISTER = 0x28 | 0x80   # the 0x80 bit makes the chip step through x, y, z
COUNTS_PER_G = 16384

# how the sensor is mounted relative to the matrix
FLIP_X = False
FLIP_Y = True
SWAP_XY = False

strip = NeoPixel(Pin(NEOPIXEL_PIN), NUMBER_PIXELS)
i2c = I2C(ACCEL_I2C_ID, sda=Pin(ACCEL_SDA_PIN), scl=Pin(ACCEL_SCL_PIN), freq=400000)
i2c.writeto_mem(ACCEL_ADDRESS, CTRL_REG1, b'\x57')   # 100 readings a second, x y z on
i2c.writeto_mem(ACCEL_ADDRESS, CTRL_REG4, b'\x88')   # high resolution, +/- 2 g

def xy(x, y):
    if SERPENTINE and y % 2 == 1:
        return y * MATRIX_WIDTH + (MATRIX_WIDTH - 1 - x)
    return y * MATRIX_WIDTH + x

def to_column(g, size):
    # -1 g -> 0, 0 g -> middle, +1 g -> size - 2 (leaves room for the 2x2 dot)
    position = round((g + 1) / 2 * (size - 2))
    return max(0, min(size - 2, position))

while True:
    raw = i2c.readfrom_mem(ACCEL_ADDRESS, ACCEL_DATA_REGISTER, 6)
    ax, ay, az = ustruct.unpack('<hhh', raw)
    gx = ax / COUNTS_PER_G
    gy = ay / COUNTS_PER_G
    if SWAP_XY:
        gx, gy = gy, gx
    if FLIP_X:
        gx = -gx
    if FLIP_Y:
        gy = -gy
    col = to_column(gx, MATRIX_WIDTH)
    row = to_column(gy, MATRIX_HEIGHT)

    for i in range(NUMBER_PIXELS):
        strip[i] = (0, 0, 0)
    for dx in range(2):
        for dy in range(2):
            strip[xy(col + dx, row + dy)] = (0, 40, 40)
    strip.write()
    sleep(0.03)

Run it and tilt the kit. The 2×2 dot slides toward the low side. Hold the kit level and the dot sits near the middle.

Test 10: Accelerometer Bubble (version 1.0.0)

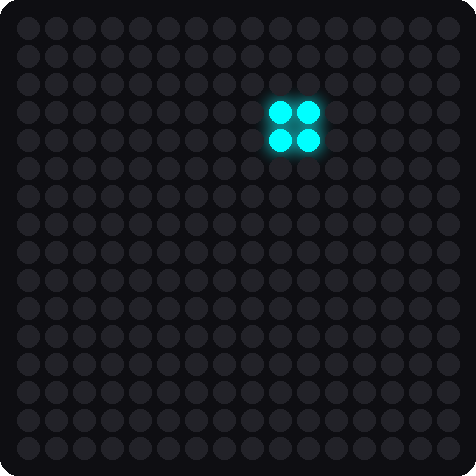

This picture was drawn by a computer simulator, so your real matrix may look a little different.

How it works

Turn g into a column

def to_column(g, size):
    # -1 g -> 0, 0 g -> middle, +1 g -> size - 2 (leaves room for the 2x2 dot)
    position = round((g + 1) / 2 * (size - 2))
    return max(0, min(size - 2, position))

The sensor gives a tilt between -1 and +1. The matrix needs a column between 0 and 14 (14 leaves room for a two-pixel-wide dot). The math in the middle stretches one range onto the other:

1. Add 1, so the tilt goes from 0 to 2.
2. Divide by 2, so it goes from 0 to 1.
3. Multiply by size - 2, so it goes from 0 to 14.

Here is the math for a 16-pixel-wide matrix:

Tilt (g)	Math	Column
-1	(-1 + 1) / 2 × 14	0
0	(0 + 1) / 2 × 14	7
0.25	(0.25 + 1) / 2 × 14 = 8.75	9
1	(1 + 1) / 2 × 14	14

The last line, max(0, min(size - 2, position)), keeps the answer between 0 and 14, even if a hard shake pushes g past 1.

The same function works for the rows. We give it the tilt in y and the matrix height.

Fix the direction

FLIP_X = False
FLIP_Y = True
SWAP_XY = False

How you mount the sensor decides which way its x and y numbers point. These three settings turn them around so the dot slides down the hill. FLIP_Y = True makes the program use -gy instead of gy. SWAP_XY would trade x and y. If your dot slides the wrong way, change one of these settings and run it again.

Draw the 2×2 dot

for dx in range(2):
    for dy in range(2):
        strip[xy(col + dx, row + dy)] = (0, 40, 40)

This is a nested loop from Lab 8. Both dx and dy count 0, 1. So the loop colors four pixels: the one at (col, row) and the three next to it. Together they make a 2×2 square.

Key idea

A mapping takes numbers from one range and stretches them onto another range. Sensors, games, and graphs all use mappings.

Try it yourself

1. Change the color of the dot from (0, 40, 40) to something you like. Keep the numbers small.
2. Flip an axis. Change FLIP_X = False to FLIP_X = True. Predict what changes, then tilt the kit left and right.
3. Draw a bigger dot. A 3×3 dot needs four changes. Use range(3) in each of the two loops. Change size - 2 to size - 3 in two places inside to_column. Can you find all four?

Check your understanding

1. What range of tilt numbers does the sensor give? What range of columns does the matrix need?
2. In to_column, what column comes out when the tilt is 0?
3. What does FLIP_Y = True do?
4. How many pixels light up in the dot? How does a nested loop make them?

Lab complete!

You made lights follow gravity! That mapping idea shows up in every game you will ever play.

What's next: In Lab 11: Sloshing Water, the whole matrix becomes a pan of water that sloshes.
