Notes for Teachers

These notes are for the adult running the Knob Clock Kit: what the parts are, what was measured on a real kit, how the programs are built, and what to do when something goes wrong. Students do not need this page.

Everything here was checked against one working kit: a Raspberry Pi Pico 2 W running MicroPython 1.29.0, wired to a "1.8 TFT + EC11" display board. Where something was not tested, this page says so.

Who the Labs Are For

The labs are written for a reader of about 11 who is new to Python and has finished Learning Python or Learning MicroPython. The kit's main page lists the ideas the labs lean on, with links back to where each one is taught.

The labs get harder in steps:

Labs	What they do	New ideas
01–03	Blink, kit checkup, hello on the screen	Running a program, coordinates, fonts
04–08	Test each control and the backlight, one at a time	Pull-ups, how the knob works, interrupts
09–13	Clocks: digital, WiFi time, analog, setting by hand	12-hour time, time zones, redrawing only what changed, bounce
14–17	Weather, stopwatch, timer, five modes in one program	Web requests, timing from a clock, state machines, modules

Labs 04, 05, and 06 only print to the Thonny shell. That is on purpose: each control is proven alone before the screen is added in lab 07. If a later lab misbehaves, the student already knows which part works.

No timings are given, because the labs have not been run with a class yet. Labs 01–08 are short. Labs 11, 13, and 17 carry the hardest ideas and deserve a session each.

Sourcing Parts

Prices on these parts change every week, and single listings come and go. Treat the prices below as a guide to what to expect.

The display board

The display, the knob, and the K0 button are all on one board. We bought ours on AliExpress. This was the listing in October 2026:

To find it, search AliExpress for 1.8 TFT EC11 rotary encoder. Three things to notice before you order:

• Choose the 1.8 inch size. The same listing sells a 2.4 inch board, for $7.02 that day. It looks the same, but it has a different chip (ST7789) and a 320 × 240 screen. This kit's driver and labs are written for the 1.8 inch board and will not work on the larger one.
• The pins come loose. The photo shows the 12-pin header as a separate strip. It has to be soldered to the board before the first lab. That is the only soldering in the kit.
• The price is for one board, before shipping.

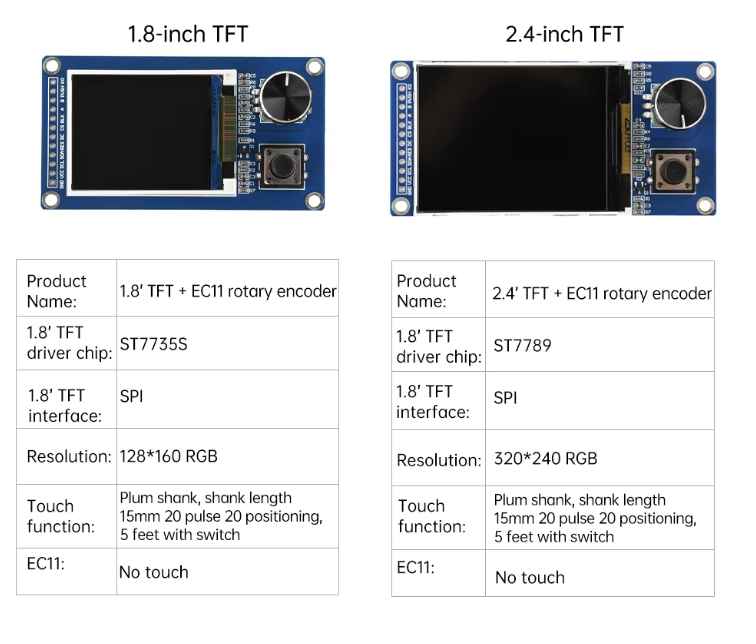

The listing's own table shows the two sizes side by side:

The table says the knob has "20 pulse 20 positioning". On the test kit, one click of the knob was two steps of its A and B lines, not four (see The Knob and the Buttons). Trust what lab 06 prints over what the listing says.

The back of the board is printed with the same facts: 128*160 RGB, TFT Drive IC: ST7735S, 4-SPI, EC11 interface: A, B, PUSH, START KEY: K0, and VCC: 3.3V/5V.

The Pico, the wires, and the USB cable

These are the same parts the Chrono Smart Clock Kit uses, and its sourcing notes cover where to buy them. Two things differ for this kit:

• The Pico. These labs were only tested on a Pico 2 W. Flash the RPI_PICO2_W build of MicroPython; the plain RPI_PICO2 build has no WiFi.
• The wires. This display needs twelve Male-Female jumper wires, not eight. The wire colors in the kit's wiring table come from our build, which used a nine-wire piece of ribbon and a three-wire piece.

Wiring Cautions

• Power the board from 3V3. The board accepts 5 volts, but its button and knob lines would then rest at 5 volts, and the Pico's pins are not built for that.
• The wires do not go to twelve pins in a row. GP2 to GP11 have two ground pins among them, after GP5 and after GP9. A student who plugs the ribbon straight in puts CS on a ground pin. The screen still draws, because CS is active when low, but every wire after it is one pin off. The symptom is a working picture with a dead knob and button.
• CS was never tested alone. Every other wire was confirmed by a lab. CS sits between two confirmed pins.

What the Kit Checkup Reports

Lab 02 prints a ten-part report and draws a summary. On the test kit it reported:

Item	Value
Processor	RP2350, running its two ARM Cortex-M33 cores at 150 MHz
Firmware	MicroPython 1.29.0, RPI_PICO2_W build
RAM	436 KB of heap, about 421 KB free at start
Flash	4 MB chip, 2.5 MB of it for files
SPI	Asked for 12 MHz, got 12 MHz
Display start-up	About 660 ms, most of it the controller's own required waits
Full-screen fill	37 ms, so at most about 27 full redraws a second

A full-screen picture needs 160 × 128 × 2 = 40,960 bytes, so a frame buffer would fit in RAM easily. The labs still draw straight to the screen, because that is how the sibling Chrono Smart Clock Kit works, and its labs were the model for these.

The Driver

The driver is lib/st7735s.py. It was written for this kit so that it has the same method names as the Chrono kit's driver: fill, fill_rect, hline, vline, rect, pixel, line, blit_buffer, and text(font, text, x, y, color, background). That is why the Chrono kit's fonts, shapes.py, and most of watchparts.py work here unchanged.

Three settings in config.py vary between ST7735 boards. All three were confirmed on the test kit:

Setting	Value	How it was confirmed
ROTATION	1	The picture is upright with the knob on the right
BGR	False	Lab 02's bars come out red, green, blue
X_OFFSET, Y_OFFSET	0, 0	Lab 03's white border is complete on all four sides

The SPI clock is 12 MHz. The ST7735S data sheet rates its write clock at about 15 MHz, and MicroPython on this board can make 8, 12, or 24 MHz near that figure, so 12 is the fastest setting inside the limit.

There is no frame buffer and no show(). Every drawing call sends pixels at once. A line at an angle is drawn one pixel at a time, and each pixel is its own message to the screen, so slanted lines are the slowest thing the driver draws.

The Knob and the Buttons

The knob is an EC11 rotary encoder. Its A and B outputs step through four positions as it turns. On this board one click is two steps: the knob rests with A and B both 1, and one click later with both 0. That is ENCODER_STEPS_PER_CLICK = 2 in config.py. Many EC11 knobs take four steps a click, so check this if you swap the board for another kind. Lab 06 prints every step and says what to change.

Lab 06 reads the knob in a loop, 1000 times a second. On the test kit it counted 550 steps without missing one. A loop like that starts to miss steps once the program is also busy drawing, so from lab 07 on the knob is read by interrupts on both edges of A and B, packaged as the Knob class in lib/watchparts.py.

PUSH and K0 read 1 at rest and 0 when pressed. The Button class in lib/watchparts.py handles bounce, and uses an interrupt so that a quick tap is not lost while the program is busy drawing.

The controls follow one rule in every lab, which is worth saying out loud to a class: K0 starts and stops, pressing the knob is the second job, and turning the knob changes a number.

How the Clock Faces Avoid Flicker

With no frame buffer, anything cleared and redrawn blinks. Each face solves that in its own way, and these are the main ideas of the later labs:

• Lab 09 redraws a whole digit, but only when that digit changes.
• Lab 11 draws the dial once. Each second it erases the old hands by drawing them in black, redraws the one numeral the second hand crossed, and draws the new hands. The dial is laid out so that the hands can never reach the ticks.
• Lab 13 treats each digit as 13 small rectangles. It repaints only the rectangles that differ between the old digit and the new one. In the simulator, a normal second sends about 65 pixels out of 20,480.
• Lab 14 draws each weather icon off-screen in a 32 × 32 frame buffer, then sends it in one piece.

The round Chrono kit has a ring of 60 seconds ticks around its rim. Here the ticks run around the edge of the rectangle instead, starting at the middle of the top edge. Ticks 15, 30, and 45 land at the middle of the right, bottom, and left edges, where 3, 6, and 9 o'clock would be.

WiFi and the Time

• The Pico 2 W joins 2.4 GHz networks only.
• secrets.py holds the network name and password. It is in the repository's .gitignore, and upload-code.sh copies it to the Pico.
• Joins sometimes fail on the first try. In testing, about one first try in three failed, even with the right password. wifi_time.py tries up to three times, with a short rest between tries. A student may see Try 1 failed in the shell and then success. That is normal.
• Time servers give UTC. TIMEZONE_HOURS and USE_US_DST in config.py turn it into local time. On the test kit the result matched a computer's clock to the second.
• The Pico has no battery-backed clock. The time is lost when it is unplugged, and the clock faces set it again over WiFi at power-up.
• When WiFi is down, a clock face stands still while it tries to connect. That can last 10 seconds or more each time.

The Weather

forecast.py asks Open-Meteo, a free service that needs no account and no key. The reply holds two days of highs, lows, and weather codes. LATITUDE, LONGITUDE, and TEMPERATURE_UNIT in config.py choose the place and the units. The kit ships set to Minneapolis and fahrenheit.

The weather clock gets a new forecast every 30 minutes. If a request fails, it keeps the old forecast and tries again every 5 minutes.

Stopwatch, Timer, and the Five Modes

Neither the stopwatch nor the timer counts by adding a little each time round the loop. Both work from the Pico's millisecond clock, so slow drawing never makes them drift.

The timer is a state machine with six states. Its alarm flashes 00:00 and the Pico's onboard LED. The kit has no buzzer. BUZZER_PIN in config.py is None, and the buzzer code path has never been run.

Lab 17 loads one mode at a time, as a module, and unloads it when the knob is turned. In Weather mode the test kit reported 390 KB of RAM free. Each mode draws only in rows 0 to 119. The bottom 8 rows belong to the main program, which draws the five mode dots there.

A stopwatch or timer left running keeps running in another mode, because its time comes from the millisecond clock. A running timer asks to be shown again when it ends, so its alarm appears whatever face is on the screen.

To make the clock start by itself at power-up, save a copy of 17-main-template.py on the Pico with the name main.py.

What Was and Was Not Tested

Every lab was run on the test kit without errors. The person who built the kit also watched the screen and worked the controls for:

• lab 06 (turning the knob) and lab 12 (setting the time)
• lab 17, stepping through all five modes
• the first versions of labs 02, 03, 07, and 08, before the driver was rewritten

The other labs were checked in the simulator and started on the kit, but nobody has yet looked closely at their screens on real hardware.

Not tested on real hardware:

• the buzzer path in the timer
• any board other than a Pico 2 W
• how the dim "ghost" segments and unlit ticks look in a bright room
• a full class of students

How the Pictures Were Made

The photos on the main page are of the real kit. Every other screen picture was made by running the lab's real code in a simulator of the screen, so the pictures show what the code draws. The simulator does not copy the real screen's colors or speed.

To make the pictures again after changing a lab, run this from the top of the repository:

python3 src/display-simulators/st7735s/render_rect_tft_docs.py

Troubleshooting

What you see	What to check
Nothing appears in the shell when a lab starts	Thonny is not connected to the Pico. Every lab prints its name and version first.
ImportError: no module named 'st7735s' (or a font name)	The lib folder is not on the Pico. Run upload-code.sh, or copy lib with Thonny.
upload-code.sh says the port is in use	Thonny is still connected. Stop or quit it first.
The screen stays dark	Check VCC is on 3V3 and GND is on a ground pin. Run lab 08 to test the backlight wire.
The screen lights up but stays blank or shows specks	Check SCL, SDA, RES, and DC against the wiring table.
The picture works, but the knob and button do nothing	The wires after DC are probably one pin off. See Wiring Cautions.
The picture is upside down	Change ROTATION to 3 in config.py.
Red and blue are swapped	Change BGR to True in config.py.
The knob counts the wrong way	Swap ENCODER_A_PIN and ENCODER_B_PIN in config.py.
The count moves two at a time, or every second click	Change ENCODER_STEPS_PER_CLICK. Lab 06 shows the steps.
Try 1 failed when joining WiFi	Normal now and then. It tries three times.
WiFi never joins	Check the name and password in secrets.py, and that the network is 2.4 GHz.
The time is wrong by whole hours	Check TIMEZONE_HOURS and USE_US_DST in config.py.
The time resets after unplugging	Expected. Run lab 10, or use a face that sets its own time.
The weather shows --	The forecast request failed. It tries again by itself in 5 minutes.
